F6100HD+DKRX24-MFT-T N4 | Butterfly Valve | 4" | 2 Way | 600Cv | w/ Electronic Fail-Safe | 24V | MFT | NEMA 4 | Belimo

Butterfly Valve (BFV), 4", 2-way, ANSI Class Consistent with 125, Cv 600 |Configurable Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, NEMA 4X, terminals

Belimo | F6100HD+DKRX24-MFT-T N4

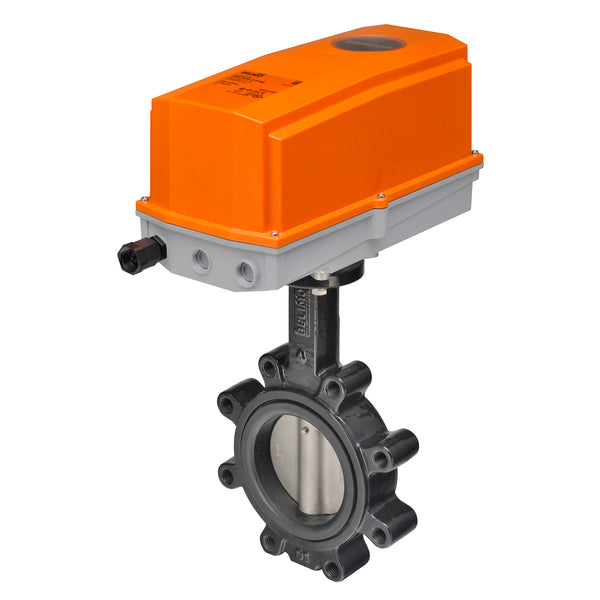

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to F6100HD+DKRX24-MFT-T N4

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Belimo F6100HD+DKRX24-MFT-T N4 Documents

Datasheet Installation Instructions More Info

Overview

Details for F6100HD+DKRX24-MFT-T N4

Butterfly Valve | 4" | 2 Way | 600Cv | w/ Electronic Fail-Safe | 24V | MFT | NEMA 4

Belimo F6100HD+DKRX24-MFT-T N4 : 2-Way 4" Butterfly Valve, Cv 600, Stainless Disc, Ductile Iron Body, EPDM Liner, 0% Leakage to 200 psi, Electronic Fail-Safe Valve Actuator, 24VAC, 801 in-lb, Programmable Control Input and Feedback Signal, Terminal Strip, 150 Second Run Time, <35 Second Fail-Safe, NEMA 4/IP66 Rated Enclosure

Specifications

Valve specifications
ANSI Class: Consistent with 125
Controllable Flow Range: 90B0 rotation
Cv: 600
End Connection: Lug types
End Fitting: Flange
Fluid: Chilled or hot water up to 60% glycol
Pattern: 2-way
Pressure Independent: NO
Valve Size: 4" [100]
Actuator specifications
Actuator Type: Electrical fail-safe
Control Type: MFT/Programmable
Degree of Protection: IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection: terminals
Manual Override: Under cover
Power Consumption (Holding): 3 W
Power Consumption (Running): 12 W
Running Time (Fail-safe): <35 s
Running Time (Motor): 150 s / 90B0
Torque: 90 Nm
Voltage AC/DC: AC/DC 24 V
