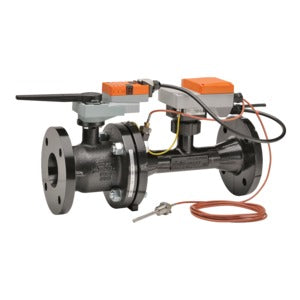

EV250S-127+ARB24-EV | Energy Valve | 2.5" | 2 Way | 127 GPM | w/ Non-Spg | 24V | 2-10V | Belimo (OBSOLETE)
Configurable Electr. 2-way PI-CCV Belimo Energy Valve™, AC/DC 24 V, BACnet IP, BACnet MS/TP, Modbus RTU, Modbus TCP, MP-Bus, DN 2 1/2"[65], flange, ANSI Class 125|Energy Valve (EV), 2 1/2", 2-way, ANSI Class 125|Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, modulating
Documents and manuals
Belimo EV250S-127+ARB24-EV Documents
Overview
Details for EV250S-127+ARB24-EV
Energy Valve | 2.5" | 2 Way | 127 GPM | w/ Non-Spg | 24V | 2-10V
Energy Valve | 2.5" | 2 Way | 127 GPM | w/ Non-Spg | 24V | 2-10V
Application
Water-side control of heating and cooling systems for AHUs and water coils. Equal Percentage/ Linear: heating and cooling applications.
Operation
The Energy Valve is an energy metering pressure independent control valve that measures, documents and optimises water coil performance.
Product Features
The Energy Valve measures energy using its built-in electronic flow sensor and supply and return temperature sensors. Controls power with its Power Control logic providing linear heat transfer regardless of temperature and pressure variations. Manages Low Delta-T syndrome with its built in Delta-T manager. An IoT device utilizing cloud-based technology to optimize performance.
Specifications
Item Number | EV250S-127+ARB24-EV |
Brand | Belimo |
Control Input | Modulating |
Control Valves Type | Energy Valve |
Cv / GPM | 127 GPM |
Spring Return | Non-Spring Return |
Valve Size | 4" - 2 Way |
Voltage | 24V |
