B6800VB-865+PKRXUP-MFT-T | Ball Valve (VB) | 8" | 2-way | ANSI Class 150 | Cv 865 | Configurable Valve Actuator | Electronic fail-safe | AC 24-240 V / DC 24-125 V | 2-10 V | 2 x SPDT | terminals | BACnet MS/TPModbus RTUMP-Bus | MFT/programmable | Belimo
Ball Valve (VB), 8", 2-way, ANSI Class 150, Cv 865 |Configurable Valve Actuator, Electronic fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TP Modbus RTU MP-Bus, MFT/programmable

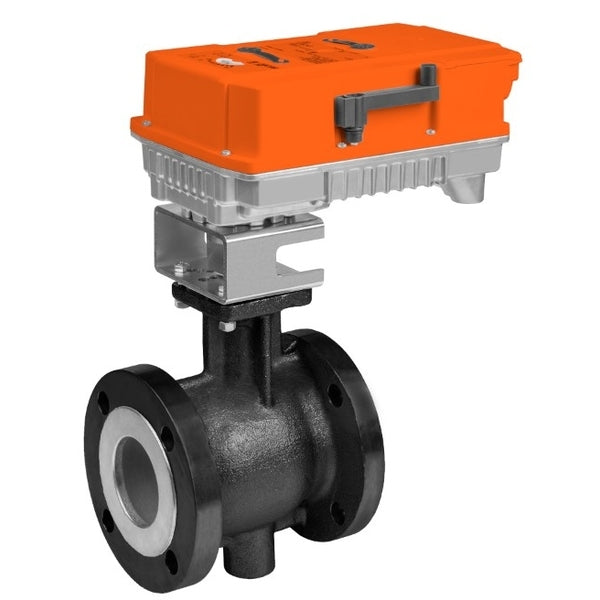

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6800VB-865+PKRXUP-MFT-T
Documents and manuals
Belimo B6800VB-865+PKRXUP-MFT-T Documents
Overview
Details for B6800VB-865+PKRXUP-MFT-T
Ball Valve (VB), 8", 2-way, ANSI Class 150, Cv 865 |Configurable Valve Actuator, Electronic fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TP Modbus RTU MP-Bus, MFT/programmable
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 150
- Controllable Flow Range
- 75B0
- Cv
- 865
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 8" [200]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- MFT/Programmable
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- 7 mm hex crank supplied
- Power Consumption (Holding)
- 9 W
- Power Consumption (Running)
- 52 W
- Running Time (Fail-safe)
- <30 s
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
