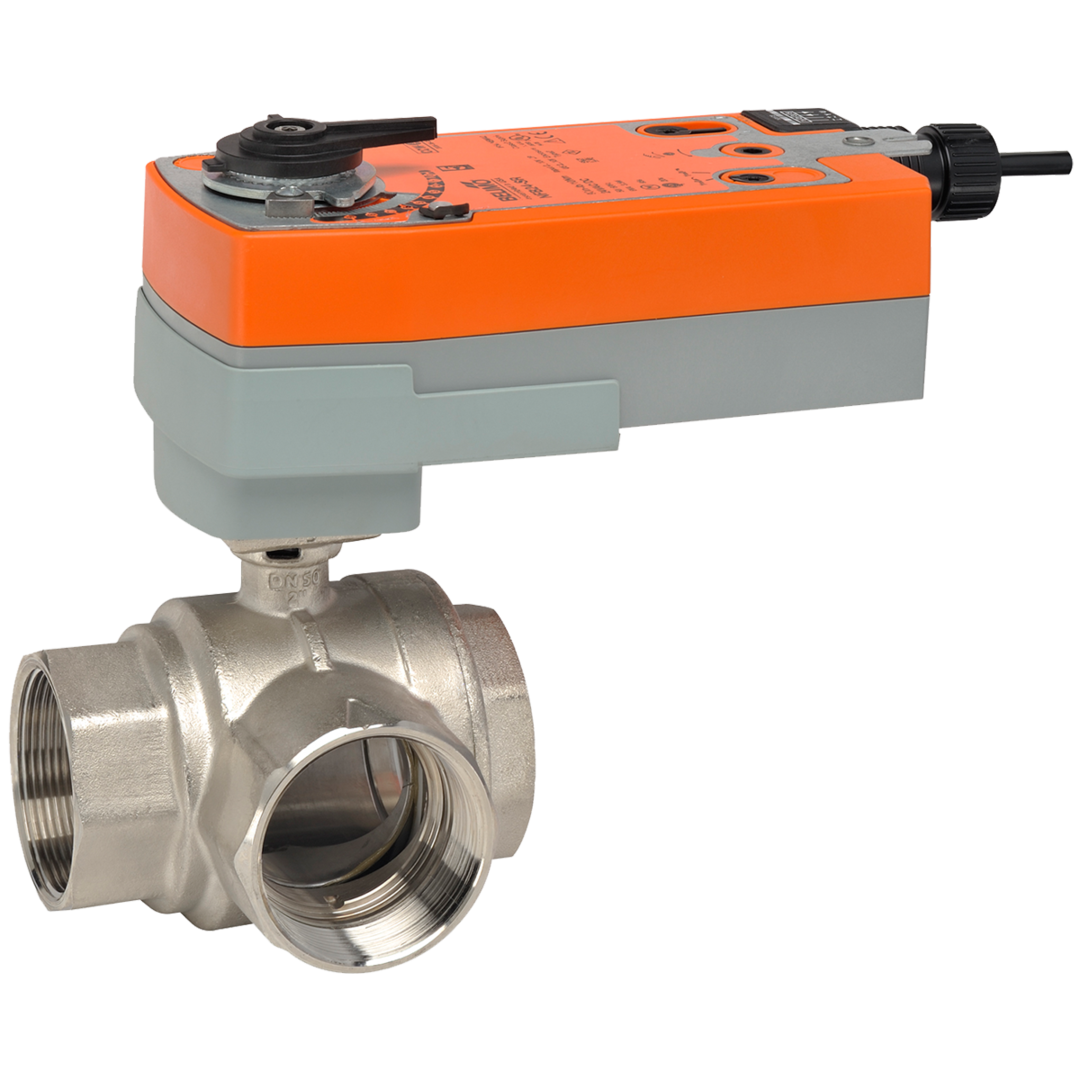

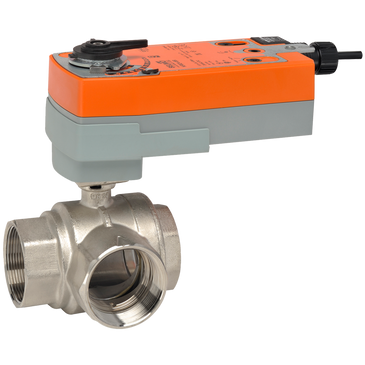

B332L+AFRX24-MFT | Ball Valve | 1.25" | 3 Way | 34 Cv | w/ Spg Rtn | 24V | MFT | Belimo
Ball Valve (BV), 1 1/4", 3-way, Cv 34 |Configurable Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, MFT/programmable
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B332L+AFRX24-MFT
Documents and manuals
Belimo B332L+AFRX24-MFT Documents
Overview
Details for B332L+AFRX24-MFT
Ball Valve | 1.25" | 3 Way | 34 Cv | w/ Spg Rtn | 24V | MFT
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Close-off Pressure
- 200 kPa
- Controllable Flow Range
- 75B0
- Cv
- 34
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Chrome plated brass
- Valve Size
- 1.25" [32]
- Actuator specifications
- Actuator Type
- Spring return
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 7.5 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
