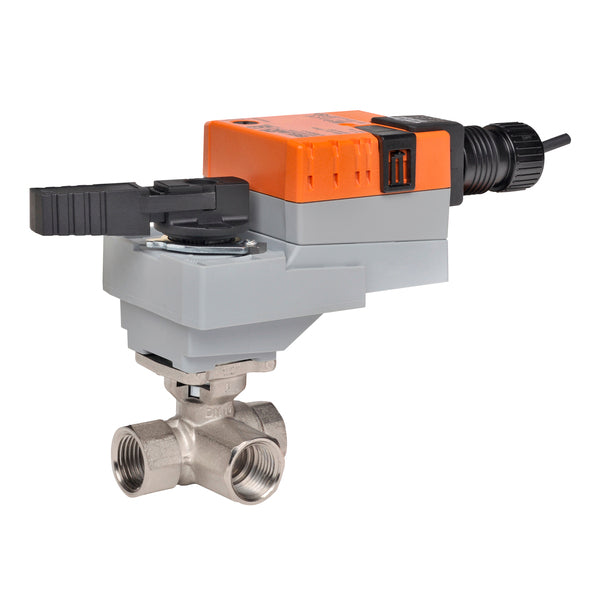

B320L+LRX24-MFT | Ball Valve | 0.75" | 3 Way | 12.8 Cv | w/ Non-Spg | 24V | MFT | Belimo
Ball Valve (BV), 3/4", 3-way, Cv 12.8 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B320L+LRX24-MFT
Documents and manuals
Belimo B320L+LRX24-MFT Documents
Overview
Details for B320L+LRX24-MFT
Ball Valve | 0.75" | 3 Way | 12.8 Cv | w/ Non-Spg | 24V | MFT
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow.Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 75B0
- Cv
- 12.8
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Chrome plated brass
- Valve Size
- 0.75" [20]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.2 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
