B232VS+AFB24-X1 | Ball Valve | 1.25" | 2 Way | 48 Cv | w/ Spg Rtn | 24V | On/Off | Belimo

Ball Valve (VS), 1 1/4", 2-way, Cv 48 |Valve Actuator, Spring return, AC/DC 24 V, On/Off

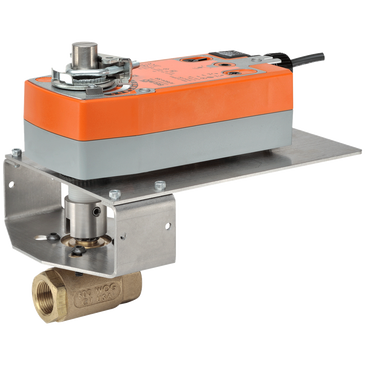

Belimo | B232VS+AFB24-X1

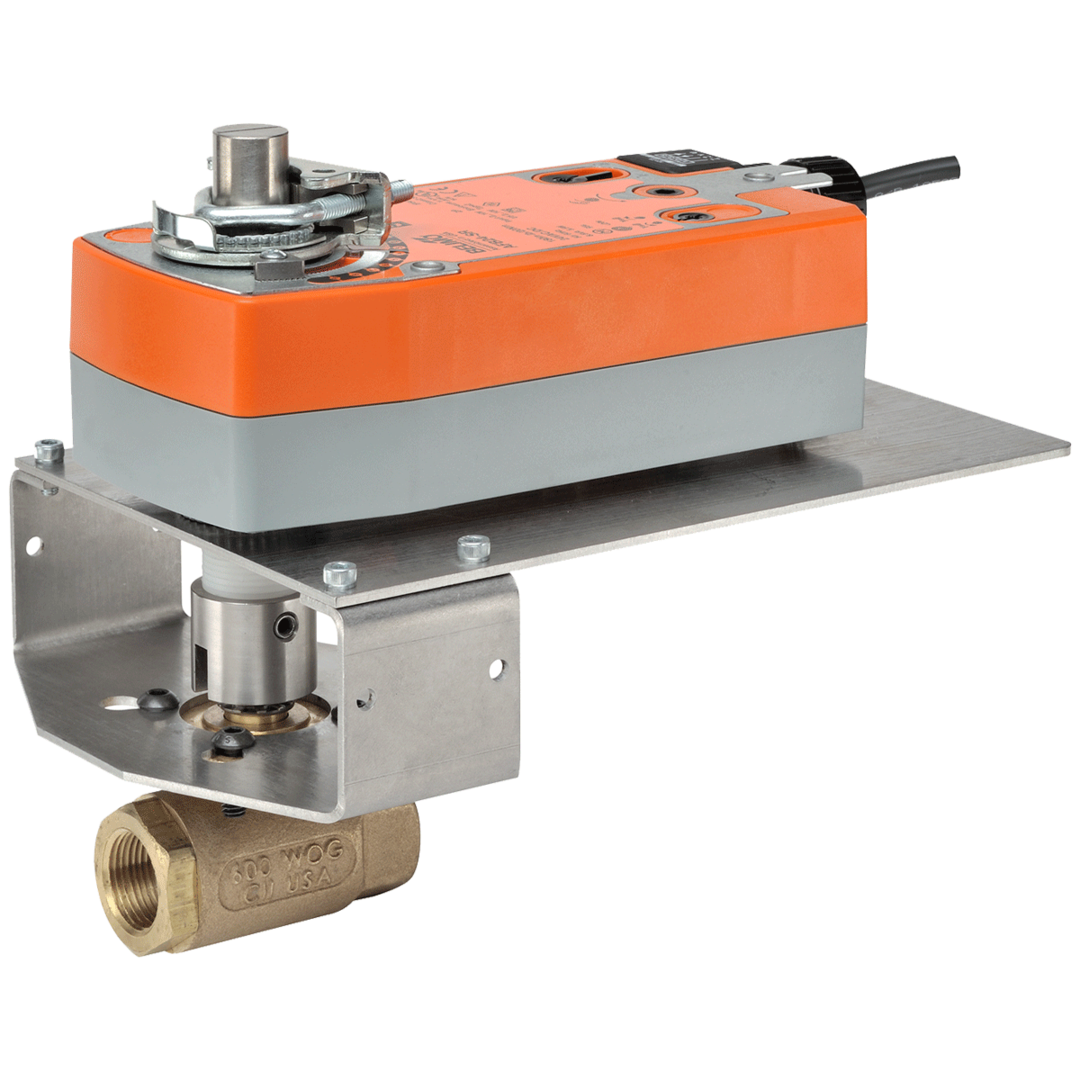

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B232VS+AFB24-X1

Documents and manuals

Belimo B232VS+AFB24-X1 Documents


Details for B232VS+AFB24-X1

Ball Valve | 1.25" | 2 Way | 48 Cv | w/ Spg Rtn | 24V | On/Off

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV Box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow. This valve is designed with MFT functionally which facilitates the use of various control input. Up to 35 psi steam 1/2" - 2" 600 PSIG WOG, Cold Non-Shock Federal Specification: WW-V-35C, Type II Composition: BZ Style: 3


Valve specifications
Angle of Rotation
Controllable Flow Range
90B0 rotation
End Fitting
Internal thread
Chilled or hot water up to 60% glycol steam
Pressure Independent
Stainless steel
Valve Size
1.25" [32]
Actuator specifications
Actuator Type
Spring return
Control Type
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
2.5 W
Power Consumption (Running)
5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC/DC 24 V
