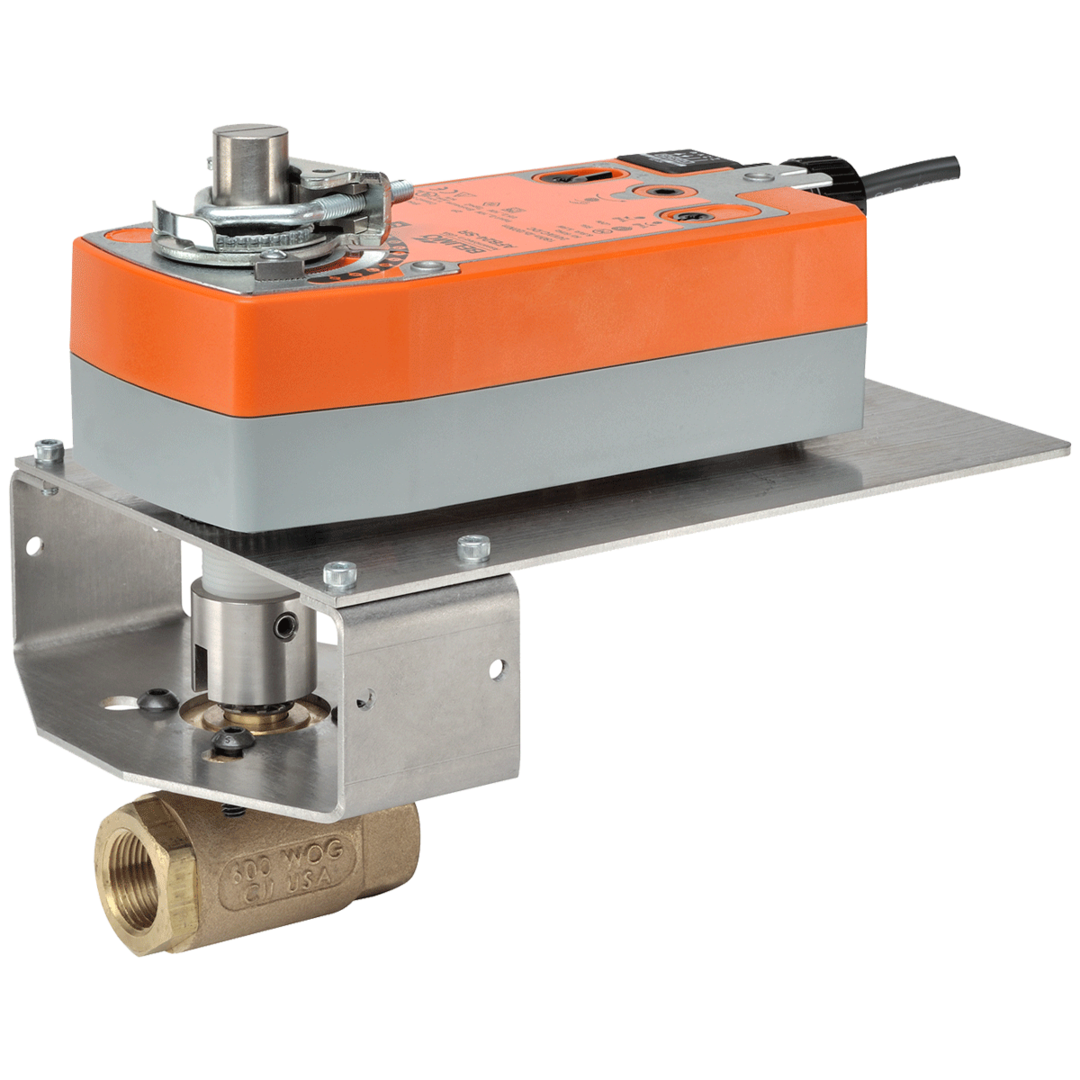

B225VS+AFBUP-X1 | Ball Valve | 1" | 2 Way | 68 Cv | w/ Spg Rtn | 24 -240V | On/Off | Belimo

Ball Valve (VS), 1", 2-way, Cv 68 |Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/Off

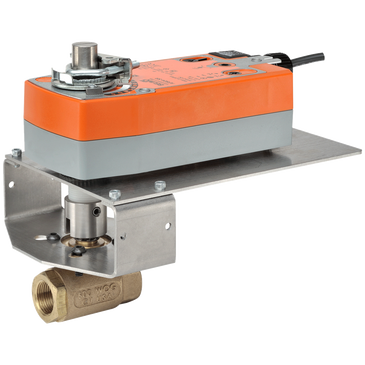

Belimo | B225VS+AFBUP-X1
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B225VS+AFBUP-X1

Documents and manuals

Belimo B225VS+AFBUP-X1 Documents

Overview

Details for B225VS+AFBUP-X1

Ball Valve | 1" | 2 Way | 68 Cv | w/ Spg Rtn | 24 -240V | On/Off

Product features This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV Box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow. This valve is designed with MFT functionally which facilitates the use of various control input. Up to 35 psi steam 1/2" - 2" 600 PSIG WOG, Cold Non-Shock Federal Specification: WW-V-35C, Type II Composition: BZ Style: 3

Specifications

Valve specifications
Angle of Rotation
95
Controllable Flow Range
90B0 rotation
Cv
68
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1" [25]
Actuator specifications
Actuator Type
Spring return
Control Type
On/Off
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3.5 W
Power Consumption (Running)
7 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC 24...240 V / DC 24...125 V
