B224VSS+AMX24-MFT-X1 | Ball Valve | 1" | 2 Way | 43 Cv | w/ Non-Spg | 24V | MFT | Belimo

Ball Valve (VSS), 1", 2-way, Cv 43 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

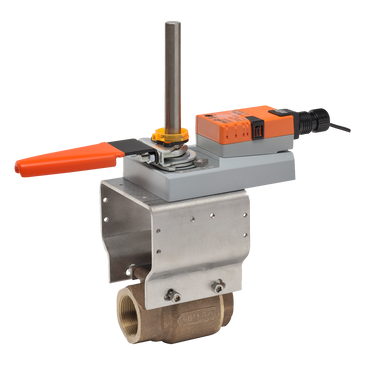

Belimo | B224VSS+AMX24-MFT-X1
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B224VSS+AMX24-MFT-X1

Documents and manuals

Belimo B224VSS+AMX24-MFT-X1 Documents

Overview

Details for B224VSS+AMX24-MFT-X1

Ball Valve | 1" | 2 Way | 43 Cv | w/ Non-Spg | 24V | MFT

n Product features These threaded valves are designed to provide modulating or two position control of hot or chilled water and saturated steam systems under 50 psi. Typical applications include reheat coils, VAV terminal control, unit ventilators, and air handlers, especially in areas which have minimum profile requirements. Up to 50 psi steam 1/2" - 2000 PSIG WOG, Cold Non-Shock Federal Specification: WW-V-35C, Type II Composition: SS Style: 3

Specifications

Valve specifications
Angle of Rotation
95
Controllable Flow Range
90B0 rotation
Cv
43
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1" [25]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
1.3 W
Power Consumption (Running)
3.5 W
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
