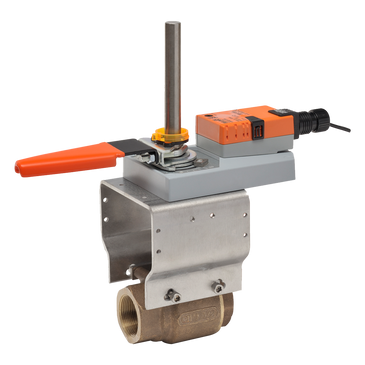

B224VSS+AMB24-3-X1 | Ball Valve | 1" | 2 Way | 43 Cv | w/ Non-Spg | 24V | Floating | Belimo

Ball Valve (VSS), 1", 2-way, Cv 43 |Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point

Belimo | B224VSS+AMB24-3-X1
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B224VSS+AMB24-3-X1

Documents and manuals

Belimo B224VSS+AMB24-3-X1 Documents

Overview

Details for B224VSS+AMB24-3-X1

Ball Valve | 1" | 2 Way | 43 Cv | w/ Non-Spg | 24V | Floating

Specifications

Valve specifications
Angle of Rotation
95
Controllable Flow Range
90B0 rotation
Cv
43
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1" [25]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
