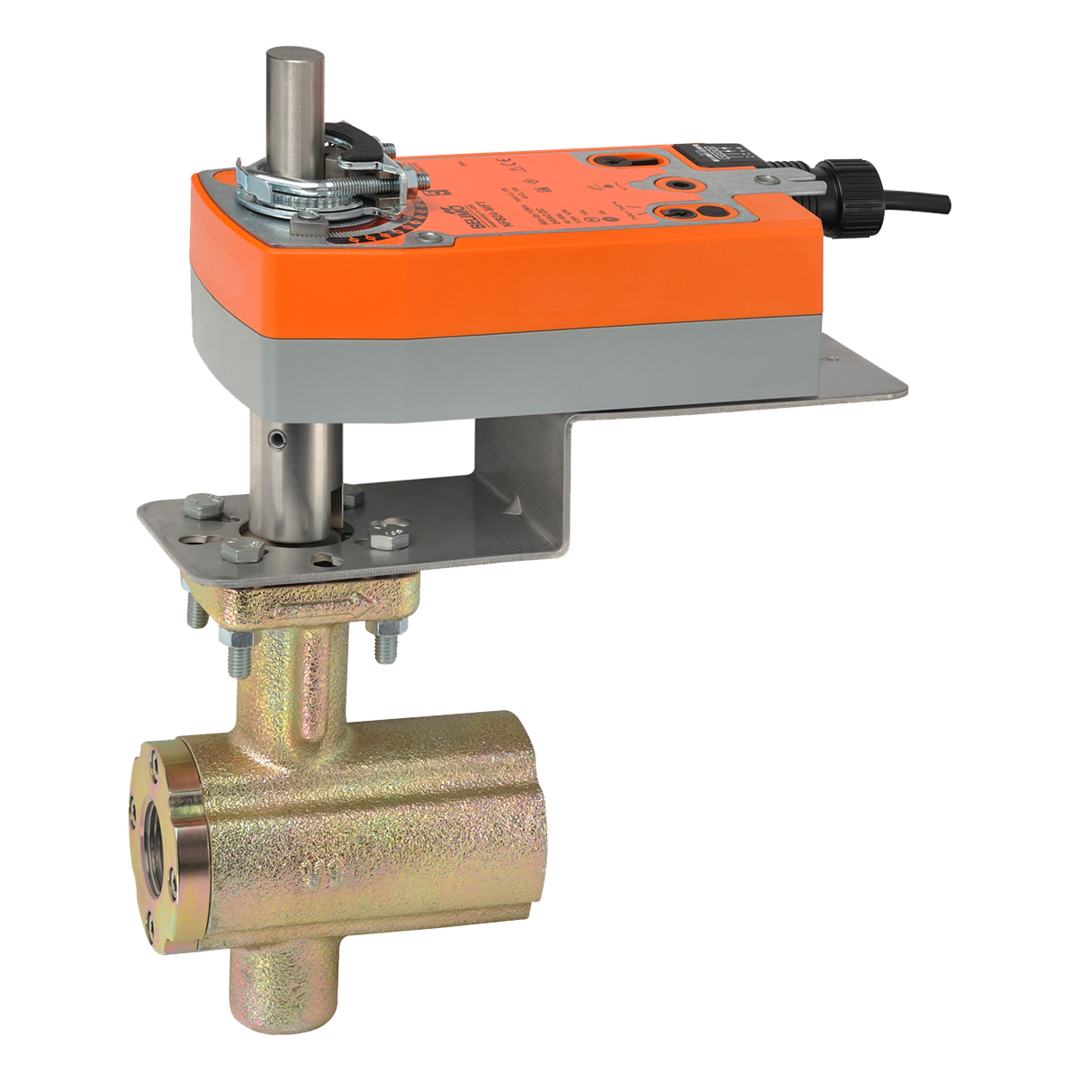

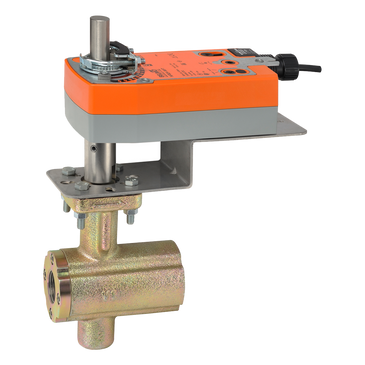

B2100VB-024+NFX24-MFT-X1 | VBall Valve | 1" | 2 Way | 24 Cv | w/ Spg Rtn | 24V | MFT | Belimo
Overview
Details for B2100VB-024+NFX24-MFT-X1
VBall Valve | 1" | 2 Way | 24 Cv | w/ Spg Rtn | 24V | MFT
Product Features
Fast quarter turn open or closed operation, Stainless steel ball and stem, Positive shut-off, Two piece body construction
Application
Water-side control of air handling apparatus in ventilation and air-conditioning system. Water/Steam control in heating system. 300:1 rangeability.
The dimensions and drilling of end flanges conform to the American cast iron flange standard, Class 150 (ANSI B16.1).
Specifications
- Item Number
- B2100VB-024+NFX24-MFT-X1
- Brand
- Belimo
- Control Input
- Belimo MFT (Modulating)
- Control Valves Type
- VBall Valve
- Cv / GPM
- 24Â Cv
- Spring Return
- Spring Return
- Valve Size
- 1" - 2 Way
- Voltage
- 24V
- Actuator specifications
- Actuator Type
- Spring return
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 6.5 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 300
- Controllable Flow Range
- 75B0
- Cv
- 24
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 1" [25]
