B2050VSS-15+LF24-MFT-S US | Ball Valve | 0.5" | 2 Way | 15 Cv | w/ Spg Rtn | 24V | MFT | SW | Belimo

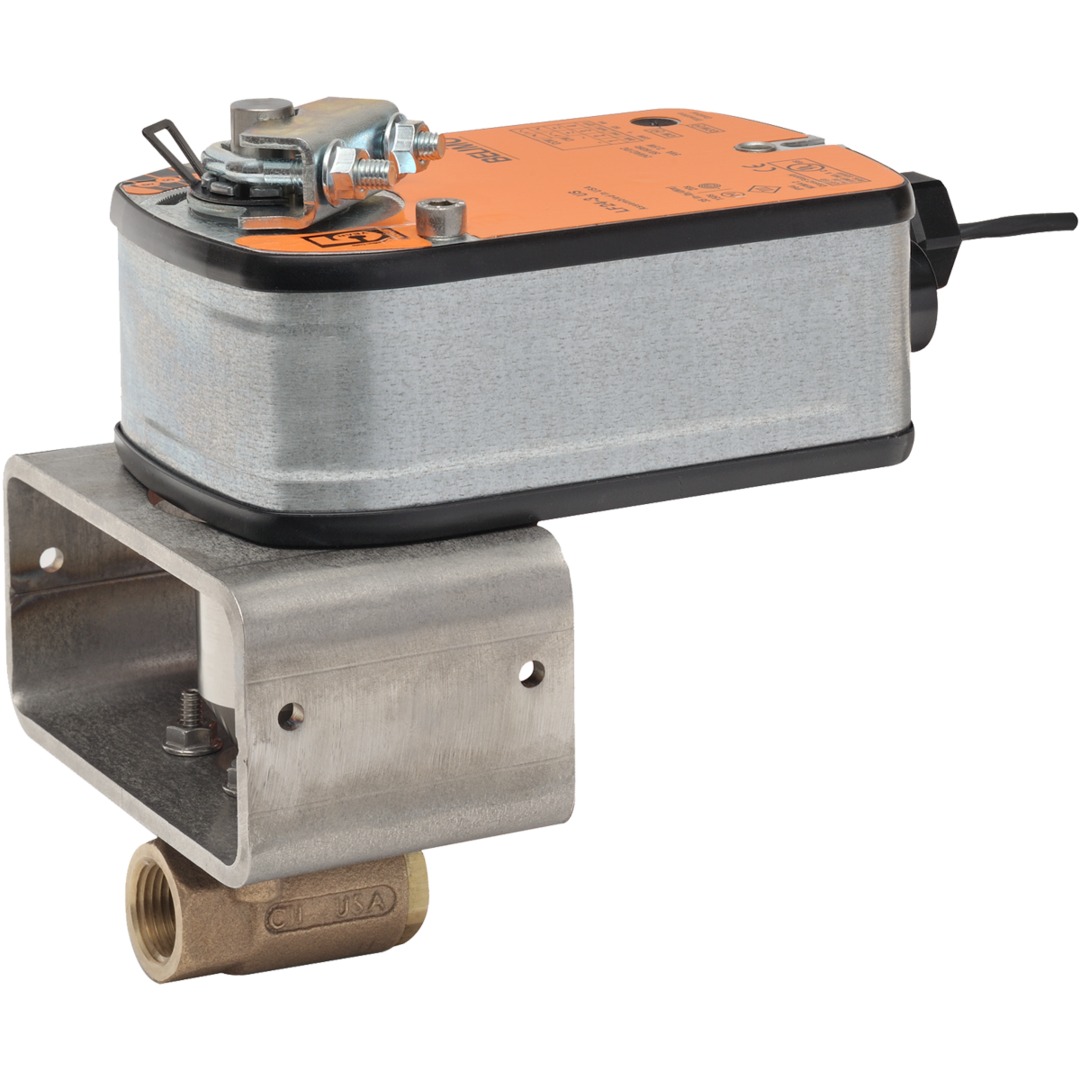

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Reviews

Overview

Details for B2050VSS-15+LF24-MFT-S US

Ball Valve | 0.5" | 2 Way | 15 Cv | w/ Spg Rtn | 24V | MFT | SW

These threaded valves are designed to provide modulating or two position control of hot or chilled water and saturated steam systems under 50 psi. Typical applications include reheat coils, VAV terminal control, unit ventilators, and air handlers, especially in areas which have minimum profile requirements. Up to 50 psi steam 1/2" - 2000 PSIG WOG, Cold Non-Shock Federal Specification: WW-V-35C, Type II Composition: SS

Specifications

Item Number: B2050VSS-15+LF24-MFT-S US
Brand: Belimo
Control Input: Belimo MFT (Modulating)
Control Valves Type: Ball Valve
Cv / GPM: 15Â Cv
End Switch: Yes
Spring Return: Spring Return
Valve Size: 0.5" - 2 Way
Voltage: 24V
Actuator specifications
Actuator Type: Spring return
Auxiliary Switches: 1 x SPDT
Degree of Protection: IP54 NEMA 2
Electrical Connection: cable
Power Consumption (Holding): 1 W
Power Consumption (Running): 2.5 W
Running Time (Fail-safe): <25 s
Running Time (Motor): 150 s / 90B0
Voltage AC/DC: AC/DC 24 V

Valve specifications
Angle of Rotation: 90
Controllable Flow Range: 90B0 rotation A b AB open ccw B b AB open cw
Cv: 15
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol steam
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 0.5" [15]
