B2050VS-15+LMX24-MFT-X1 | Ball Valve | 0.5" | 2 Way | 15 Cv | w/ Non-Spg | 24V | MFT | Belimo

Ball Valve (VS), 1/2", 2-way, Cv 15 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Belimo | B2050VS-15+LMX24-MFT-X1

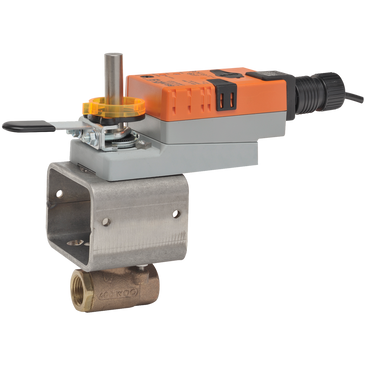

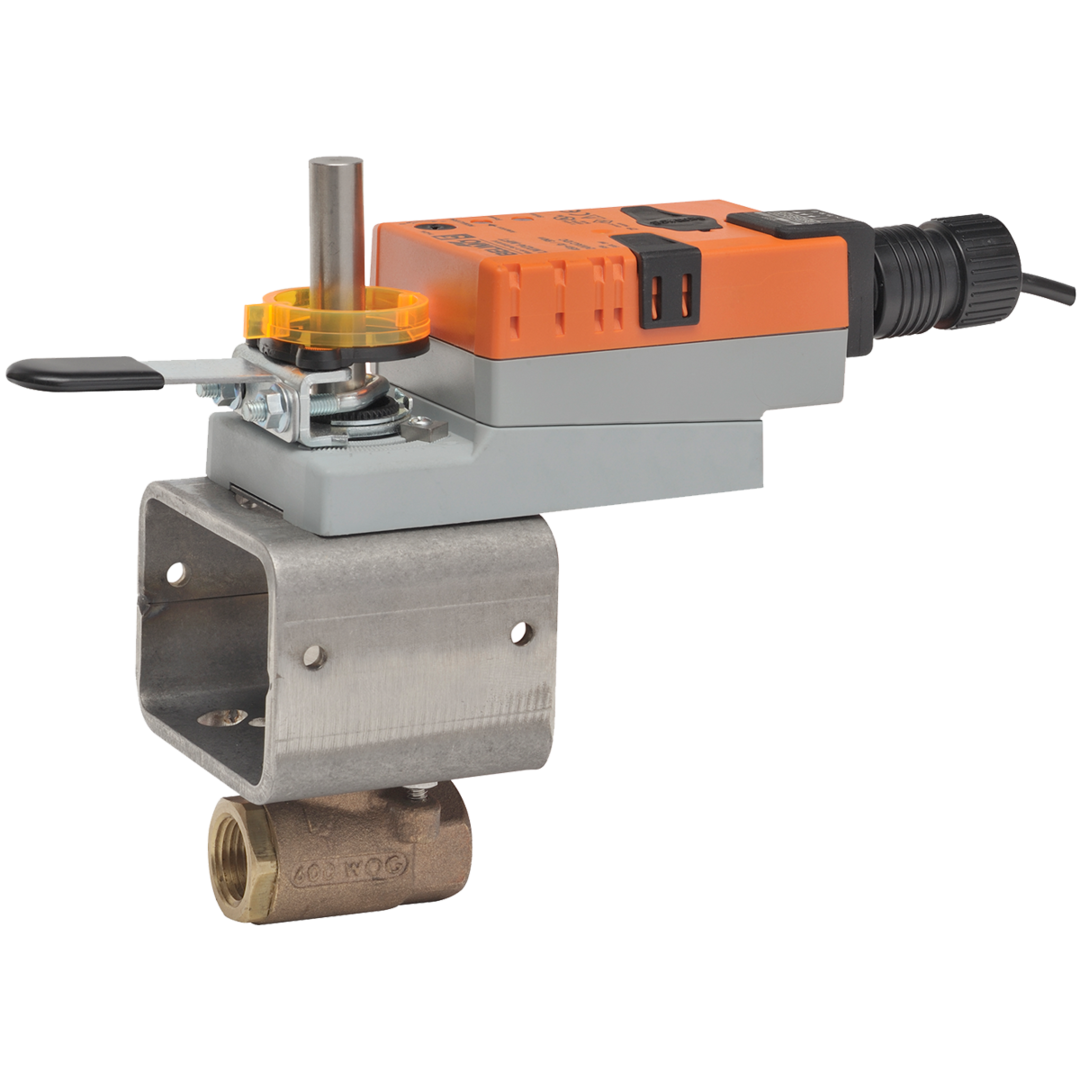

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B2050VS-15+LMX24-MFT-X1

Documents and manuals

Belimo B2050VS-15+LMX24-MFT-X1 Documents

Overview

Details for B2050VS-15+LMX24-MFT-X1

Ball Valve | 0.5" | 2 Way | 15 Cv | w/ Non-Spg | 24V | MFT

Specifications

Valve specifications
Angle of Rotation
95
Controllable Flow Range
90B0 rotation
Cv
15
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
1.2 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
