B2050VS-01+LMX24-MFT-X1 | Ball Valve | 0.5" | 2 Way | 1 Cv | w/ Non-Spg | 24V | MFT | Belimo

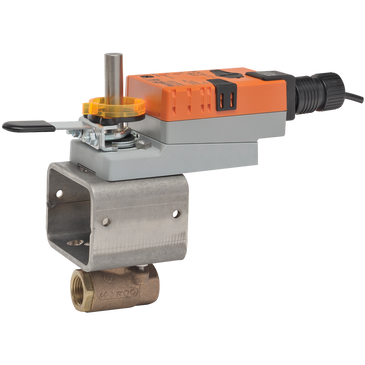

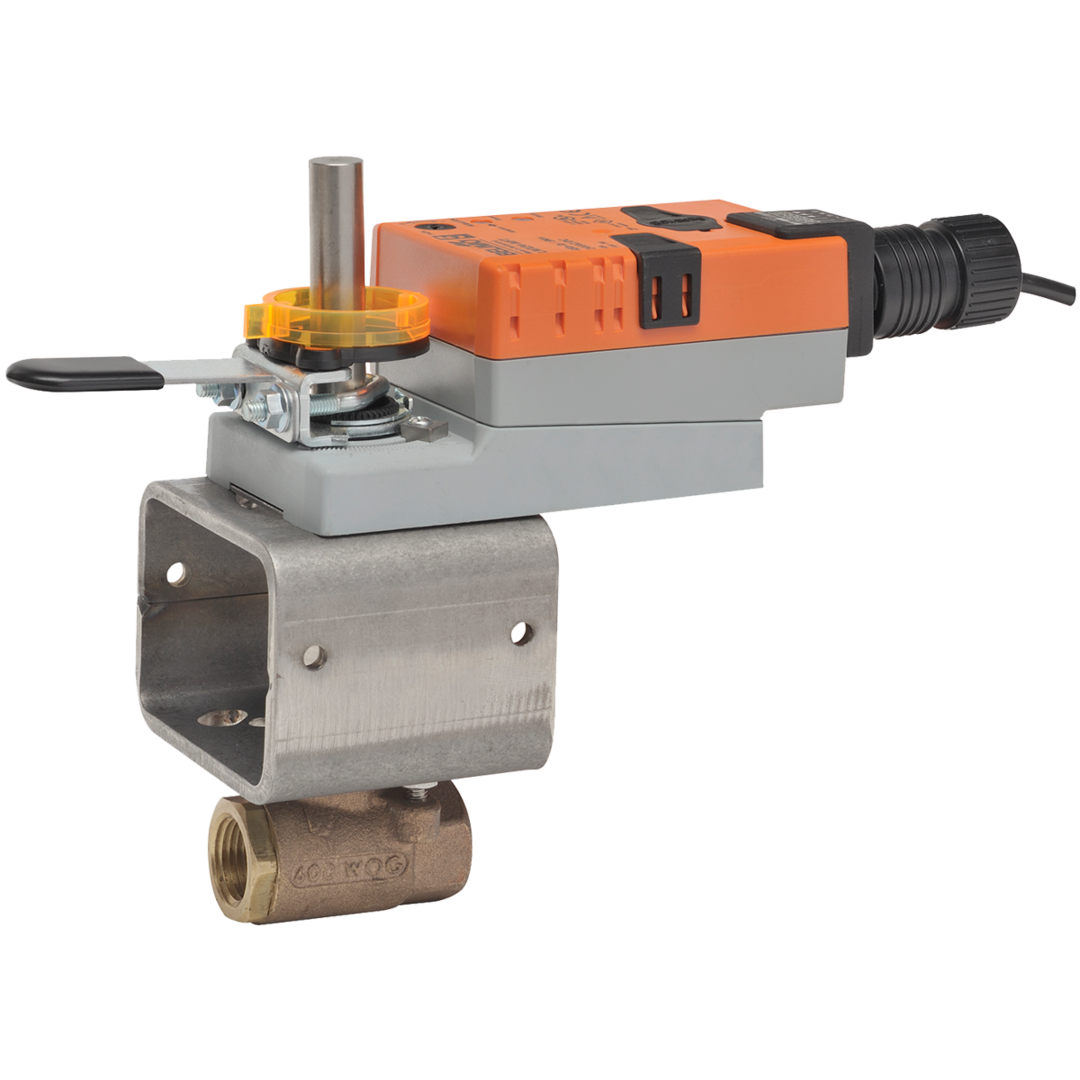

Belimo | B2050VS-01+LMX24-MFT-X1
The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for B2050VS-01+LMX24-MFT-X1

Ball Valve | 0.5" | 2 Way | 1 Cv | w/ Non-Spg | 24V | MFT

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV Box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow. This valve is designed with MFT functionally which facilitates the use of various control input. Up to 35 psi steam 1/2" - 2" 600 PSIG WOG, Cold Non-Shock Federal Specification: WW-V-35C, Type II Composition: BZ

Specifications

Item Number
B2050VS-01+LMX24-MFT-X1
Brand
Belimo
Control Input
Belimo MFT (Modulating)
Control Valves Type
Ball Valve
Cv / GPM
1 Cv
Spring Return
Non-Spring Return
Valve Size
0.5" - 2 Way
Voltage
24V
Actuator specifications
Actuator Type
Non fail-safe
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
1.2 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
Valve specifications
Angle of Rotation
95
Controllable Flow Range
90B0 rotation
Cv
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
