01HT-5B | Contact Temp Sensor PT1000 | Belimo

Contact Temp Sensor PT1000

Description

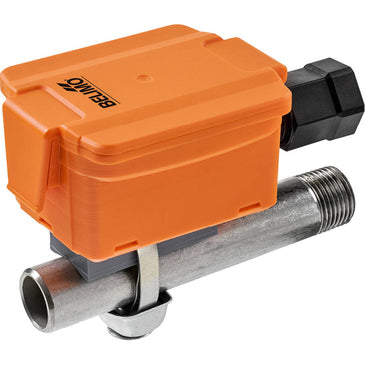

Surface contact mounted pipe temperature sensor. Nema 4X / IP65 rated enclosure. Spring loaded brass contact sensor to ensure fast response and accurate reading.

Technical Data

Electrical Data

Electrical Connection: removable spring loaded terminal block max.11 GA [2.5 mm²]
Cable Entry: cable gland PG11 Ø6 to 10 mm, with strain relief Ø6 to 8 m

Functional Data

Output Signal Passive Temperature: PT100
PT1000
Ni1000 (JCI)
NTC10k2
NTC10k3
NTC20k
Media: water

Measuring Data

Measured Values: temperature
Accuracy Temperature: passive sensors depending on used type
PT.. = ±0.5°F @ 32°F [±0.3°C @ 0°C]
Ni.. = ±0.7°F @ 32°F [±0.4°C @ 0°C]
NTC.. = ±0.3°F @ 77°F [±0.2°C @ 25°C]

Materials

Cable Gland: PA6, black
Housing:
cover: lexan, Belimo orange NCS S0580-Y6OR
base: lexan, Belimo orange NCS S0580-Y6OR
seal: 0467 NBR70, black

Safety Data

Ambient Humidity: 85% RH non-condensing
Ambient Temperature: -30°F to 120°F [-35°C to 50°C]
Medium Temperature: -30°F to 195°F [-35°C to 90°C]
Housing Surface Temperature (Tsurf): max. 195°F [90°C]
Protection Class IEC/EN: III safety extra-low voltage (selv)
Protection Class UL: UL Class 2 Supply
EU Conformity: CE Marking
Certification IEC/EN IEC/EN: 60730-1 and IEC/EN 60730-2-9
Certification UL: pending
Degree of Protection IEC/EN: IP65
Degree of Protection NEMA/ UL: NEMA 4X
Quality Standard: ISO 9001
Weight: 0.095 lbs
