01DT-5QH | Duct Temp Sensor NTC20kP 50x6 | Belimo
Duct/Immersion Temperature Sensor passive, NTC20k, Probe length 2" [50 mm], Probe diameter 0.24" [6 mm]
Documents and manuals
Belimo 01DT-5QH Documents
Overview
Details for 01DT-5QH

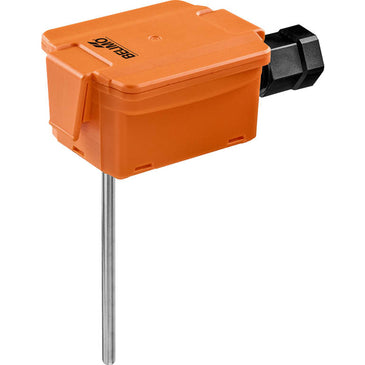

Duct Temp Sensor NTC20kP 50x6
Description
Duct/Immersion temperature sensor for duct and pipe applications. NEMA 4X / IP65 rated enclosure. Various stainless steel probe lengths available. Stainless steel or brass thermowell pockets should be purchased with sensors intended for immersion applications.
Electrical Data
Cable Entry: cable gland PG11 Ø6 to 10 mm, with strain
relief Ø6 to 8 mm, 1/2" conduit adapter
included
Functional Data
Output Signal Passive Temperature:
PT100
PT1000
Ni1000 (JCI)
NTC10k2
NTC10k3
NTC20k
Media: air, water
Measuring Data
Measured Values: temperature
Measuring Range Temperature Settings: PT.., Ni.. : -60°F to 320°F [-50°C to 160°C] NTC.. : -60°F to 300°F [-50°C to 150°C]
Accuracy Temperature: passive sensors depending on used type
PT.. = ±0.5°F @ 32°F [±0.3°C @ 0°C]
Ni.. = ±0.7°F @ 32°F [±0.4°C @ 0°C]
NTC.. = ±0.3°F @ 77°F [±0.2°C @ 25°C]
Materials
Cable Gland:
plug adapter: PA66, black
nut: PA6, black
Housing:
cover: lexan, Belimo orange NCS S0580-Y6OR
base: lexan, Belimo orange NCS S0580-Y6OR
seal: 0467 NBR70, black
Safety Data
Ambient Humidity: 85% RH non-condensing
Ambient Temperature: -30°F to 120°F [-35°C to 50°C]
Medium Temperature: PT.., Ni.. : -60°F to 320°F [-50°C to 160°C] NTC.. : -60°F to 300°F [-50°C to 150°C]
Housing Surface Temperature (Tsurf): max. 195°F [90°C]
Protection Class IEC/EN: III protective extra-low voltage (pelv)
Protection Class UL: UL Class 2 Supply
EU Conformity: CE Marking
Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-9
Certification UL: pending
Degree of Protection IEC/EN: IP65
Degree of Protection NEMA/ UL: NEMA 4X
Quality Standard: ISO 9001
Weight: 0.095 lbs
Specifications
- Application
- Duct
- Pipe
- Degree of Protection
- IP65 NEMA 4X
- Electrical Connection
- terminals
- Measured Values
- Temperature
- Measuring Range Temperature
- -60...300B0F [-50...150B0C]
- Mounting Type
- Single Point
- Immersion
- Output Signal
- NTC20k
- Probe Length
- 2" [50 mm]
- Product Type
- Sensor
- Sensor Type
- Temperature
Reviews
