SURTD5000RMXLP3U | APC Smart-UPS RT 5000VA RM 208V to 208/120V | APC by Schneider Electric

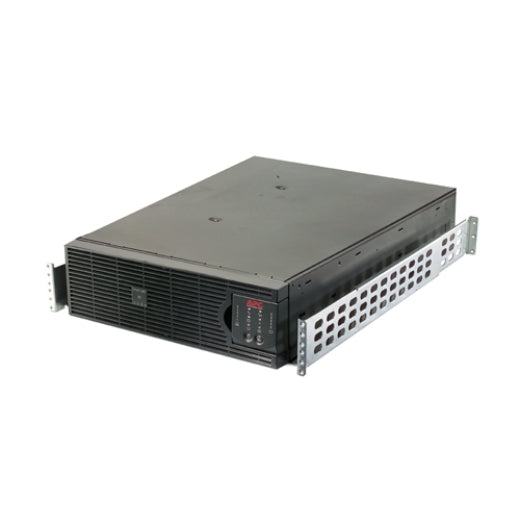

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SURTD5000RMXLP3U

Jump to: Documents Overview Specifications Reviews

Documents and manuals

APC SURTD5000RMXLP3U Documents

Datasheet More Info

Overview

Details for SURTD5000RMXLP3U

APC Smart-UPS RT 5000VA RM 208V to 208/120V

APC Smart-UPS RT 5000VA RM 208V to 208/120V

APC Smart-UPS On-Line,4000 Watts /5000 VA,Input 208V /Output 120V, 208V, Interface Port RJ-45 10/100 Base-T, SmartSlot, Extended runtime model, Rack Height 3 U

Includes: CD with software, Rack Mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, User Manual

Specifications

Presentation: High density, double-conversion on-line power protection with scalable runtime.
Lead time: Usually in Stock
Run time for load W information_stroke Min-max: 400-4000 W: 4min 50s
Max. Capacity Used information_stroke: 100 %
Main Input Voltage: 208 V
Product or component type: Uninterruptible power supply (UPS)
Other Input Voltage: 240 V
Main Output Voltage: 120 V
208 V
Other Output Voltage: 240 V
Rated power in W: 4000 W
Rated power in VA: 5000 VA
Input Connection Type: NEMA L14-30P
output connection type: 4 NEMA 5-20R
1 NEMA L6-30R
1 NEMA L14-30R
Number of rack unit: 3U
Cable length: 3.05 m
Number of cables: 1
battery type: Lead-acid battery
Provided equipment: CD with software
Rack mounting support rails
Removable support feet
Smart UPS signalling RS-232 cable
User manual
Run Time: View Runtime Graph
action_new_window
Number of battery filled slots: 2
Battery recharge time: 2.5 h
Number of battery replacement quantity: 1
additional information: Configurable for 208 or 240 nominal output voltage
Battery charger power: 382 W rated
Battery power in VAH: 960 VAh runtime
Battery life: 3…5 year(s)
Replacement battery: APCRBC140
action_new_window
SURT10000XLIX710
action_new_window
SURT192XLBP-IN
action_new_window
Battery option: SURT192RMXLBP3U 1 2880 VAh
SURT192RMXLBP3U 2 4800 VAh
SURT192RMXLBP3U 3 6720 VAh
SURT192RMXLBP3U 4 8640 VAh
SURT192RMXLBP3U 5 10560 VAh
SURT192RMXLBP3U 6 12480 VAh
SURT192RMXLBP3U 8 16320 VAh
SURT192RMXLBP3U 10 20160 VAh
Extended runtime: 1
Number of power module free slots: 0
Number of power module filled slots: 0
Redundant: No
Colour: Black
Height: 13 cm
Width: 43.2 cm
Depth: 66 cm
Net weight: 58.06 kg
Mounting location: Front
Mounting preference: Lower
Mounting mode: Rack-mounted
Two post mountable: 0
USB compatible: No
Network frequency: 50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits: 85...136 V adjustable
156...236 V
Maximum configurable power in W: 4000 W
Harmonic distortion: Less than 2 %
Output frequency: 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains
Crest factor: 3 : 1
UPS type: Double conversion online
Wave type: Sine wave
bypass type: Internal bypass (automatic and manual)
Efficiency: 90 % (full load)
Maximum configurable power in VA: 5000 VA
product certifications: CSA
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0...10000 ft
Ambient air temperature for storage: -15…45 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0.00…15240.00 m
Acoustic level: 55 dBA
Heat dissipation: 1589 Btu/h
IP degree of protection: IP20
Free slots: 0
Preinstalled device: Network management card 2 with environmental monitoring
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off: Yes
Surge energy rate: 365 J
Noise suppression: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 34.7 cm
Package 1 Width: 98 cm
Package 1 Length: 60.3 cm
Package 1 Weight: 72.12 kg
Warranty: 2 years repair or replace
