SUA5000RMT5U | APC Smart-UPS 5000VA 208V Rackmount/Tower | APC by Schneider Electric

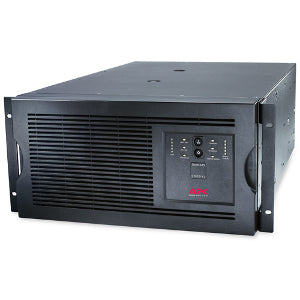

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SUA5000RMT5U
Overview
Details for SUA5000RMT5U
APC Smart-UPS 5000VA 208V Rackmount/Tower
APC Smart-UPS 5000VA 208V Rackmount/TowerAPC Smart-UPS,4000 Watts /5000 VA,Input 208V /Output 208V, Interface Port DB-9 RS-232, SmartSlot, Rack Height 5 U
Includes: CD with software, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card
Specifications
- Presentation
- Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
- Lead time
- Usually Ships within 3 Weeks
- Run time for load
W
information_stroke
Min-max: 400-4000 W - 9min 21s
- Max. Capacity Used
information_stroke - 100 %
- Main Input Voltage
- 208 V
- Main Output Voltage
- 208 V
- Rated power in W
- 4000 W
- Rated power in VA
- 5000 VA
- Input Connection Type
- NEMA L6-30P
- output connection type
- 2 NEMA L6-20R
2 NEMA L6-30R - Number of rack unit
- 5U
- Cable length
- 2.44 m
- Number of cables
- 1
- battery type
- Lead-acid battery
- Provided equipment
- CD with software
Rack mounting support rails
Smart UPS signalling RS-232 cable
User manual
Web/SNMP management card - Run Time
- View Runtime Graph
action_new_window - Efficiency
- View Efficiency Graph
action_new_window - Extended runtime
- 0
- Number of battery filled slots
- 0
- Number of battery free slots
- 0
- Battery recharge time
- 3 h
- Number of battery replacement quantity
- 2
- Battery life
- 3…5 year(s)
- Replacement battery
- RBC55
action_new_window - Battery power in VAH
- 1632 VAh runtime
- Battery charger power
- 542 W rated
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Colour
- Black
- Height
- 22.2 cm
- Width
- 48.3 cm
- Depth
- 66 cm
- Net weight
- 97.73 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- Two post mountable
- 0
- USB compatible
- No
- Input voltage limits
- 131...268 V adjustable
141...255 V - Network frequency
- 50/60 Hz +/- 5 Hz manual switch
- Harmonic distortion
- Less than 5 % at full load
- Maximum configurable power in VA
- 5000 VA
- Maximum configurable power in W
- 4000 W
- Transfer time
- 2 ms typical : 4 ms maximum
- UPS type
- Line interactive
- Wave type
- Sine wave
- Output frequency
- 47...53 Hz for 50 Hz nominal sync to mains
57...63 Hz for 60 Hz nominal sync to mains - product certifications
- CSA
- Equipment protection policy
- Lifetime : $150000
- Acoustic level
- 53 dBA
- Heat dissipation
- 344 Btu/h
- Operating altitude
- 0...10000 ft
- Ambient air temperature for operation
- 0…45 °C
- Ambient air temperature for storage
- -5…55 °C
- Storage altitude
- 0.00…15240.00 m
- Relative humidity
- 0…95 %
- Storage Relative Humidity
- 0…95 %
- control panel
- LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
- Emergency power off
- Optional
- Free slots
- 0
- Preinstalled device
- Network management card
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- Surge energy rate
- 480 J
- Noise suppression
- Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 63.5 cm
- Package 1 Width
- 76.2 cm
- Package 1 Length
- 61 cm
- Package 1 Weight
- 106.82 kg
- Warranty
- 2 years repair or replace
