Documents: SRT6KRMXLT
SRT6KRMXLT | APC Smart-UPS SRT 6000VA RM 208V | APC by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SRT6KRMXLT
Overview Details for SRT6KRMXLT

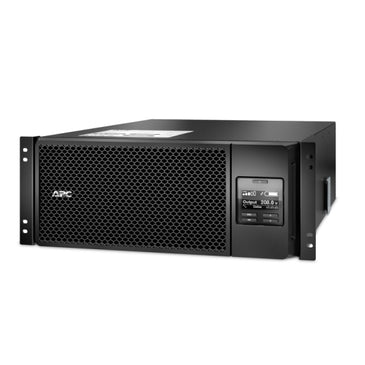

APC Smart-UPS SRT 6000VA RM 208V
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with Hard Wire 3-wire (2P+E) input, 2x NEMA L6-20R and 3x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.Specifications
- Lead time
- Usually in Stock
- Run time for load
W
information_stroke
Min-max: 600-6000 W - 2min 17s
- Max. Capacity Used
information_stroke - 100 %
- Main Input Voltage
- 208 V
- Other Input Voltage
- 240 V
- Main Output Voltage
- 208 V
- Other Output Voltage
- 240 V
- Rated power in W
- 6000 W
- Rated power in VA
- 6000 VA
- output connection type
- 2 NEMA L6-20R
3 NEMA L6-30R - Output connector type
- Hard wire 3-wire (2P + E) 1
- Number of rack unit
- 4U
- battery type
- Lead-acid battery
- Provided equipment
- CD with software
Documentation CD
Installation guide
Rack mounting hardware
Rack mounting brackets
Rack mounting support rails
Temperature probe
USB cable
Warranty card
Web/SNMP management card - Run Time
- View Runtime Graph
action_new_window - Efficiency
- View Efficiency Graph
action_new_window - Number of battery filled slots
- 0
- Number of battery free slots
- 0
- Battery recharge time
- 1.5 h
- Number of battery replacement quantity
- 1
- battery voltage
- 192 V
- Battery charger power
- 579 W rated
- Battery power in VAH
- 875 VAh runtime
- Battery life
- 3…5 year(s)
- Replacement battery
- APCRBC140
action_new_window
SRT192BP2US
action_new_window
SRT192RMBPUS
action_new_window
SURT10000XLIX710
action_new_window
SURT192XLBP-IN
action_new_window - Battery option
- SRT192RMBP 1 2625 VAh
SRT192RMBP 2 4375 VAh
SRT192RMBP 3 6125 VAh
SRT192RMBP 4 7875 VAh
SRT192RMBP 5 9625 VAh
SRT192RMBP 6 11375 VAh
SRT192RMBP 8 14875 VAh
SRT192RMBP 10 18375 VAh - Extended runtime
- 1
- product web sub-family
- High density
- Number of power module free slots
- 0
- Number of power module filled slots
- 0
- Redundant
- No
- Colour
- Black
- Height
- 17.4 cm
- Width
- 43.2 cm
- Depth
- 71.9 cm
- Net weight
- 61.23 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- Two post mountable
- 0
- USB compatible
- Yes
- Mounting position
- Horizontal
- Network frequency
- 40...70 Hz auto-sensing
- Number of input connectors
- 1 hard wire 3-wire (2P + E)
- Input voltage limits
- 100...275 V adjustable (half load)
- Maximum configurable power in W
- 6000 W
- Harmonic distortion
- Less than 2 %
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Crest factor
- 3 : 1
- UPS type
- Double conversion online
- Wave type
- Sine wave
- bypass type
- Internal bypass (automatic and manual)
- Maximum configurable power in VA
- 6000 VA
- product certifications
- ENERGY STAR V2.0 (USA)
FCC part 15 class A
NOM
UL 1778 - Ambient air temperature for operation
- 0…40 °C
- Relative humidity
- 0…95 % non-condensing
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 0…95 % non-condensing
- Storage altitude
- 0.00…15240.00 m
- Acoustic level
- 55 dBA
- Heat dissipation
- 1402 Btu/h
- IP degree of protection
- IP20
- Free slots
- 1
- Preinstalled device
- Network management card 3 with environmental monitoring
- Alarm
- Audible and visible alarms : prioritized by severity
- Emergency power off
- Yes
- Surge energy rate
- 480 J
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 37 cm
- Package 1 Width
- 96 cm
- Package 1 Length
- 61 cm
- Package 1 Weight
- 68.04 kg
- Warranty
- 3 years repair or replace (excluding battery) and 2 years for battery
