SRT5KXLT | APC Smart-UPS SRT 5000VA 208V | APC by Schneider Electric

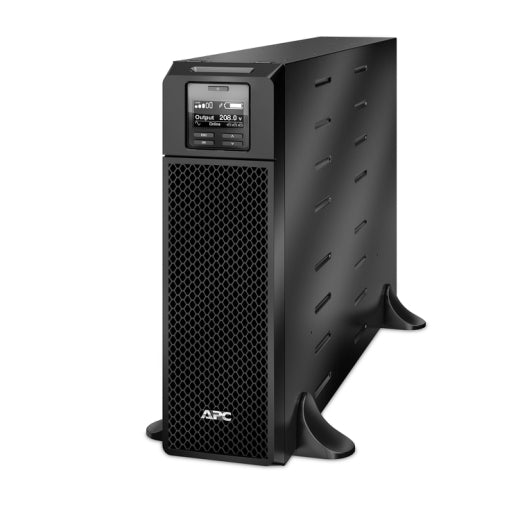

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SRT5KXLT
Overview Details for SRT5KXLT
APC Smart-UPS SRT 5000VA 208V
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-30P input, 2x NEMA L6-30R and 2x L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.Specifications
- Lead time
- Usually in Stock
- Run time for load
W
information_stroke
Min-max: 480-4800 W - 3min 27s
- Max. Capacity Used
information_stroke - 100 %
- Main Input Voltage
- 208 V
- Other Input Voltage
- 240 V
- Main Output Voltage
- 208 V
- Other Output Voltage
- 240 V
- Rated power in W
- 4800 W
- Rated power in VA
- 5400 VA
- Input Connection Type
- NEMA L6-30P
- output connection type
- 2 NEMA L6-20R
2 NEMA L6-30R - Cable length
- 3.05 m
- Number of cables
- 1
- battery type
- Lead-acid battery
- Provided equipment
- CD with software
Documentation CD
Installation guide
Removable support feet
Temperature probe
USB cable
Warranty card
Web/SNMP management card - Run Time
- View Runtime Graph
action_new_window - Efficiency
- View Efficiency Graph
action_new_window - Number of battery filled slots
- 0
- Number of battery free slots
- 0
- Battery recharge time
- 1.5 h
- Number of battery replacement quantity
- 1
- battery voltage
- 192 V
- Battery charger power
- 556 W rated
- Battery power in VAH
- 840 VAh runtime
- Battery life
- 3…5 year(s)
- Replacement battery
- APCRBC140
action_new_window - Battery option
- SRT192BP 1 2520 VAh
SRT192BP 2 4200 VAh
SRT192BP 3 5880 VAh
SRT192BP 4 7560 VAh
SRT192BP 5 9240 VAh
SRT192BP 6 10920 VAh
SRT192BP 8 14600 VAh
SRT192BP 10 17640 VAh - Extended runtime
- 1
- product web sub-family
- High density
- Number of power module free slots
- 0
- Number of power module filled slots
- 0
- Redundant
- No
- Colour
- Black
- Height
- 43.2 cm
- Width
- 13 cm
- Depth
- 71.9 cm
- Net weight
- 55.79 kg
- Mounting location
- Front
- Mounting preference
- No preference
- Mounting mode
- Rack-mounted with kit
- Two post mountable
- 0
- USB compatible
- Yes
- Network frequency
- 40...70 Hz auto-sensing
- Input voltage limits
- 100...275 V adjustable (half load)
- Maximum configurable power in W
- 4800 W
- Harmonic distortion
- Less than 2 %
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Crest factor
- 3 : 1
- UPS type
- Double conversion online
- Wave type
- Sine wave
- bypass type
- Internal bypass (automatic and manual)
- Maximum configurable power in VA
- 5400 VA
- product certifications
- ENERGY STAR V2.0 (USA)
NOM - Ambient air temperature for operation
- 0…40 °C
- Relative humidity
- 0…95 % non-condensing
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 0…95 % non-condensing
- Storage altitude
- 0.00…15240.00 m
- Acoustic level
- 55 dBA
- Heat dissipation
- 1047 Btu/h
- IP degree of protection
- IP20
- Free slots
- 1
- Preinstalled device
- Network management card 3 with environmental monitoring
- Alarm
- Audible and visible alarms : prioritized by severity
- Emergency power off
- Yes
- Surge energy rate
- 480 J
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 33 cm
- Package 1 Width
- 96 cm
- Package 1 Length
- 61 cm
- Package 1 Weight
- 64.41 kg
- Warranty
- 3 years repair or replace (excluding battery) and 2 years for battery
