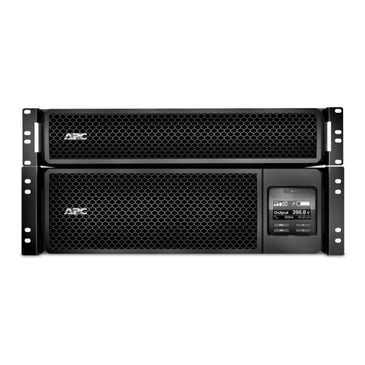

SRT5KRMXLT-5KTF | APC Smart-UPS SRT 5000VA RM 208V to 120V 2U Step-Down Transformer | APC by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SRT5KRMXLT-5KTF

Jump to: Documents Overview Specifications Reviews

Documents and manuals

APC SRT5KRMXLT-5KTF Documents

Datasheet More Info

Overview

Details for SRT5KRMXLT-5KTF

APC Smart-UPS SRT 5000VA RM 208V to 120V 2U Step-Down Transformer

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-30P input, 12x NEMA 5-20R, 1x NEMA L6-30R, and 2x NEMA L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

Specifications

Lead time: Usually in Stock
Run time for load W information_stroke Min-max: 480-4800 W: 3min 27s
Max. Capacity Used information_stroke: 100 %
Main Input Voltage: 208 V
Other Input Voltage: 240 V
Main Output Voltage: 120 V
208 V
Other Output Voltage: 240 V
Rated power in W: 4800 W
Rated power in VA: 5000 VA
Input Connection Type: NEMA L6-30P
output connection type: 12 NEMA 5-20R
2 NEMA L6-20R
1 NEMA L6-30R
Number of rack unit: 5U
Cable length: 3.05 m
Number of cables: 1
battery type: Lead-acid battery
Provided equipment: Documentation CD
Rack mounting hardware
Rack mounting brackets
Rack mounting support rails
User manual
USB cable
Warranty card
Web/SNMP management card
Run Time: View Runtime Graph
action_new_window
Efficiency: View Efficiency Graph
action_new_window
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 1.5 h
Number of battery replacement quantity: 1
battery voltage: 192 V
Battery charger power: 556 W rated
Battery power in VAH: 840 VAh runtime
Battery life: 3…5 year(s)
Replacement battery: APCRBC140
action_new_window
Battery option: SRT192RMBP 1 2520 VAh
SRT192RMBP 2 4200 VAh
SRT192RMBP 3 5880 VAh
SRT192RMBP 4 7560 VAh
SRT192RMBP 5 9240 VAh
SRT192RMBP 6 10920 VAh
SRT192RMBP 8 14600 VAh
SRT192RMBP 10 17640 VAh
Extended runtime: 1
product web sub-family: High density
Number of power module free slots: 0
Number of power module filled slots: 0
Redundant: No
Colour: Black
Height: 21.8 cm
Width: 43.2 cm
Depth: 71.9 cm
Net weight: 98.88 kg
Mounting location: Front
Mounting preference: No preference
Mounting mode: Rack-mounted
Two post mountable: 0
USB compatible: Yes
Mounting position: Horizontal
Network frequency: 40...70 Hz auto-sensing
Input voltage limits: 100...275 V adjustable (half load)
Maximum configurable power in W: 4800 W
Harmonic distortion: Less than 2 %
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Crest factor: 3 : 1
UPS type: Double conversion online
Wave type: Sine wave
bypass type: Internal bypass (automatic and manual)
Maximum configurable power in VA: 5000 VA
product certifications: ENERGY STAR V2.0 (USA)
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0...10000 ft
Ambient air temperature for storage: -15…45 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0.00…15240.00 m
Acoustic level: 55 dBA
Heat dissipation: 1047 Btu/h
IP degree of protection: IP20
Free slots: 1
Preinstalled device: Network management card 3 with environmental monitoring
Alarm: Audible and visible alarms : prioritized by severity
Emergency power off: Yes
Surge energy rate: 480 J
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 58.4 cm
Package 1 Width: 96 cm
Package 1 Length: 62.2 cm
Package 1 Weight: 117.93 kg
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery
