SRT5KRMTF | APC Smart-UPS 5kVA 2U RM Step-Down Transformer | APC by Schneider Electric

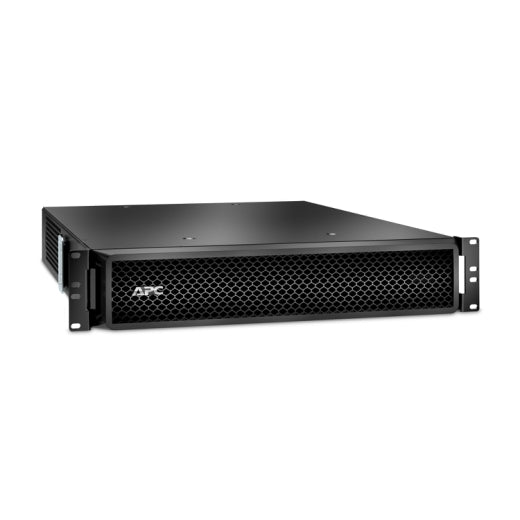

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SRT5KRMTF

Jump to: Documents Overview Specifications Reviews

Documents and manuals

APC SRT5KRMTF Documents

Datasheet More Info

Overview

Details for SRT5KRMTF

APC Smart-UPS 5kVA 2U RM Step-Down Transformer

This step-down transformer is part of the Smart-UPS accessories. This is a 5kVA step-down transformer and can be used with 5kVA SRT On-Line rackmount UPS. It can be installed in a 19 inch rack with supplied rail kit.

Specifications

Lead time: Usually in Stock
Main Input Voltage: 208 V
Product or component type: Uninterruptible power supply (UPS)
Main Output Voltage: 120 V
Input Connection Type: NEMA L6-30P
Number of rack unit: 2U
Number of cables: 1
Provided equipment: Mounting hardware
Rack mounting brackets
User manual
Warranty card
Colour: Black
Height: 8.9 cm
Width: 43.2 cm
Depth: 63.7 cm
Net weight: 43.09 kg
Mounting location: Front
Mounting preference: No preference
Mounting mode: Rack-mounted
Mounting position: Horizontal
Max line current: 24 A
Input current limits: 30 A
Load capacity: 5000 VA
Max current draw: 24 A
Number of power socket outlets: 12
Number of power socket outlets: 12 NEMA 5-20R
product certifications: CSA
Standards: UL 1778
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0...10000 ft
Ambient air temperature for storage: -15…45 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0.00…15240.00 m
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 25.4 cm
Package 1 Width: 95.2 cm
Package 1 Length: 62.2 cm
Package 1 Weight: 49.9 kg
Warranty: 2 years repair or replace
