SRT3000XLA | APC Smart-UPS SRT 3000VA 120V | APC by Schneider Electric

Brand: APCSKU: SRT3000XLA

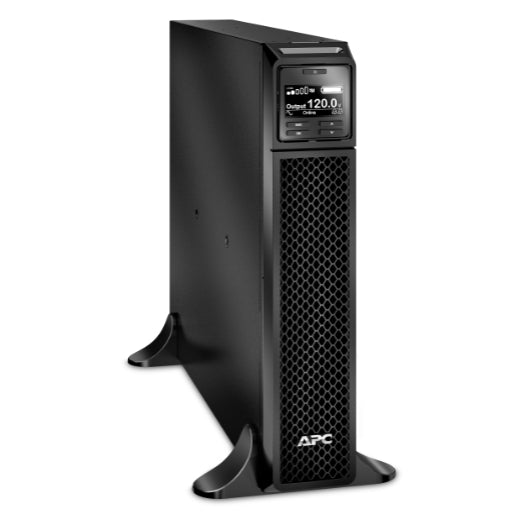

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SRT3000XLA

Jump to: Overview & Specifications Reviews

Overview Details for SRT3000XLA

APC Smart-UPS SRT 3000VA 120V

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L5-30P input and 8x NEMA 5-20R and 1x NEMA L5-30R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.

Specifications

Presentation: High density, double-conversion on-line power protection with scalable runtime.
Lead time: Usually in Stock
Run time for load W information_stroke Min-max: 270-2700 W: 3min 13s
Max. Capacity Used information_stroke: 100 %
Main Input Voltage: 120 V
Main Output Voltage: 120 V
Rated power in W: 2700 W
Rated power in VA: 3000 VA
Input Connection Type: NEMA L5-30P
output connection type: 8 NEMA 5-20R
1 NEMA L5-30R
Cable length: 3.05 m
Number of cables: 1
battery type: Lead-acid battery
Provided equipment: CD with software
Documentation CD
Installation guide
Removable support feet
USB cable
Warranty card
Run Time: View Runtime Graph
action_new_window
Efficiency: View Efficiency Graph
action_new_window
Number of battery filled slots: 1
Battery recharge time: 3 h
Number of battery replacement quantity: 1
battery voltage: 96 V
Battery charger power: 151 W rated
Battery power in VAH: 454 VAh runtime
Battery life: 3…5 year(s)
Replacement battery: APCRBC152
action_new_window
Battery option: SRT96BP 1 1362 VAh
SRT96BP 2 2270 VAh
SRT96BP 3 3178 VAh
SRT96BP 4 4086 VAh
SRT96BP 5 4994 VAh
SRT96BP 6 5902 VAh
SRT96BP 8 7718 VAh
SRT96BP 10 9534 VAh
Extended runtime: 1
product web sub-family: High density
Number of power module free slots: 0
Number of power module filled slots: 0
Redundant: No
Colour: Black
Height: 43.2 cm
Width: 8.5 cm
Depth: 63.5 cm
Net weight: 31.3 kg
Mounting location: Front
Mounting preference: Lower
Mounting mode: Not rack-mountable
Two post mountable: 0
USB compatible: Yes
Mounting position: Vertical
Network frequency: 40...70 Hz auto-sensing
Maximum configurable power in W: 2700 W
Harmonic distortion: Less than 2 %
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Crest factor: 3 : 1
UPS type: Double conversion online
Wave type: Sine wave
bypass type: Internal bypass (automatic and manual)
Maximum configurable power in VA: 3000 VA
product certifications: ENERGY STAR V2.0 (USA)
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0...10000 ft
Ambient air temperature for storage: -15…45 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0.00…15240.00 m
Acoustic level: 55 dBA
Heat dissipation: 805 Btu/h
IP degree of protection: IP20
Free slots: 1
Alarm: Audible and visible alarms : prioritized by severity
Emergency power off: Yes
Surge energy rate: 340 J
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 24.6 cm
Package 1 Width: 87.1 cm
Package 1 Length: 59.9 cm
Package 1 Weight: 36.74 kg
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery

Documents: SRT3000XLA
