SRT3000RMXLA | APC Smart-UPS SRT 3000VA RM 120V | APC by Schneider Electric

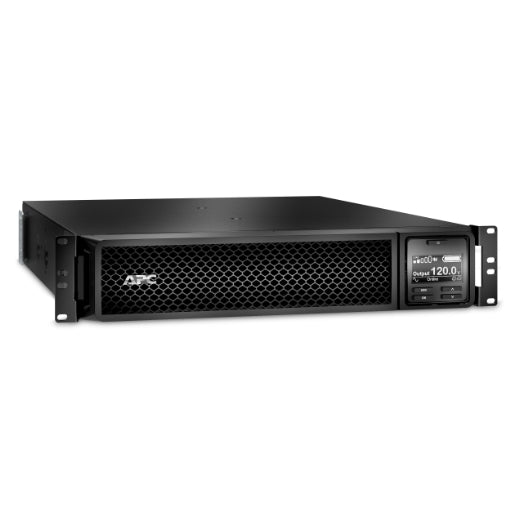

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SRT3000RMXLA
Overview
Details for SRT3000RMXLA
APC Smart-UPS SRT 3000VA RM 120V
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-30P input, 8x NEMA 5-20R and 1x NEMA L5-30R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.Specifications
- Presentation
- High density, double-conversion on-line power protection with scalable runtime.
- Lead time
- Usually in Stock
- Run time for load
W
information_stroke
Min-max: 270-2700 W - 3min 13s
- Max. Capacity Used
information_stroke - 100 %
- Main Input Voltage
- 120 V
- Main Output Voltage
- 120 V
- Rated power in W
- 2700 W
- Rated power in VA
- 3000 VA
- Input Connection Type
- NEMA L5-30P
- output connection type
- 8 NEMA 5-20R
1 NEMA L5-30R - Number of rack unit
- 2U
- Cable length
- 2.44 m
- Number of cables
- 1
- battery type
- Lead-acid battery
- Provided equipment
- CD with software
Documentation CD
Installation guide
Rack mounting brackets
Rack mounting support rails
USB cable
Warranty card - Run Time
- View Runtime Graph
action_new_window - Efficiency
- View Efficiency Graph
action_new_window - Number of battery filled slots
- 1
- Battery recharge time
- 3 h
- Number of battery replacement quantity
- 1
- battery voltage
- 96 V
- Battery charger power
- 151 W rated
- Battery power in VAH
- 454 VAh runtime
- Battery life
- 3…5 year(s)
- Replacement battery
- APCRBC152
action_new_window - Battery option
- SRT96RMBP 1 1362 VAh
SRT96RMBP 2 2270 VAh
SRT96RMBP 3 3178 VAh
SRT96RMBP 4 4086 VAh
SRT96RMBP 5 4994 VAh
SRT96RMBP 6 5902 VAh
SRT96RMBP 8 7718 VAh
SRT96RMBP 10 9534 VAh - Extended runtime
- 1
- product web sub-family
- High density
- Number of power module free slots
- 0
- Number of power module filled slots
- 0
- Redundant
- No
- Colour
- Black
- Height
- 8.5 cm
- Width
- 43.2 cm
- Depth
- 63.5 cm
- Net weight
- 31.3 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- Two post mountable
- 0
- USB compatible
- Yes
- Mounting position
- Horizontal
- Network frequency
- 40...70 Hz auto-sensing
- Maximum configurable power in W
- 2700 W
- Harmonic distortion
- Less than 2 %
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Crest factor
- 3 : 1
- UPS type
- Double conversion online
- Wave type
- Sine wave
- bypass type
- Internal bypass (automatic and manual)
- Maximum configurable power in VA
- 3000 VA
- product certifications
- ENERGY STAR V2.0 (USA)
- Ambient air temperature for operation
- 0…40 °C
- Relative humidity
- 0…95 % non-condensing
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 0…95 % non-condensing
- Storage altitude
- 0.00…15240.00 m
- Acoustic level
- 55 dBA
- Heat dissipation
- 805 Btu/h
- IP degree of protection
- IP20
- Free slots
- 1
- Alarm
- Audible and visible alarms : prioritized by severity
- Emergency power off
- Yes
- Surge energy rate
- 340 J
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 23.6 cm
- Package 1 Width
- 34.3 cm
- Package 1 Length
- 9.7 cm
- Package 1 Weight
- 39.92 kg
- Warranty
- 3 years repair or replace (excluding battery) and 2 years for battery
