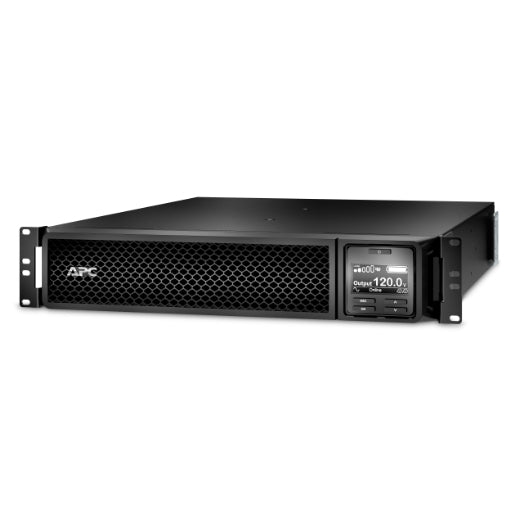

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SRT1500RMXLA-NC

Jump to: Overview & Specifications Reviews

Overview Details for SRT1500RMXLA-NC

APC Smart-UPS SRT 1500VA RM 120V Network Card

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1500VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

Specifications

Lead time: Usually in Stock
Run time for load W information_stroke Min-max: 135-1350 W: 4min 37s
Max. Capacity Used information_stroke: 100 %
Main Input Voltage: 120 V
Main Output Voltage: 120 V
Rated power in W: 1350 W
Rated power in VA: 1500 VA
Input Connection Type: NEMA 5-15P
output connection type: 6 NEMA 5-15R
Number of rack unit: 2U
Cable length: 1.83 m
Number of cables: 1
battery type: Lead-acid battery
Provided equipment: CD with software
Communication cable
Documentation CD
Installation guide
Network management card
Rack mounting hardware
Rack mounting brackets
Rack mounting support rails
Temperature probe
USB cable
Warranty card
Run Time: View Runtime Graph
action_new_window
Efficiency: View Efficiency Graph
action_new_window
Number of battery filled slots: 1
Number of battery free slots: 0
Battery recharge time: 3 h
Number of battery replacement quantity: 1
battery voltage: 48 V
Battery charger power: 91 W rated
Battery power in VAH: 273 VAh runtime
Battery life: 3…5 year(s)
Replacement battery: APCRBC155
action_new_window
Battery option: SRT48RMBP 1 819 VAh
SRT48RMBP 2 1365 VAh
SRT48RMBP 3 1910 VAh
SRT48RMBP 4 2456 VAh
SRT48RMBP 5 3002 VAh
SRT48RMBP 6 3548 VAh
SRT48RMBP 8 4640 VAh
SRT48RMBP 10 5731 VAh
Extended runtime: 1
product web sub-family: High density
Number of power module free slots: 0
Number of power module filled slots: 0
Redundant: No
Colour: Black
Height: 8.5 cm
Width: 43.2 cm
Depth: 50.8 cm
Net weight: 22 kg
Mounting location: Front
Mounting preference: No preference
Mounting mode: Rack-mounted
Two post mountable: 0
USB compatible: Yes
Mounting position: Horizontal
Network frequency: 40...70 Hz auto-sensing
Input voltage limits: 108...150 V
50...150 V 40% load
Maximum configurable power in W: 1350 W
Harmonic distortion: Less than 2 %
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Crest factor: 3 : 1
UPS type: Double conversion online
Wave type: Sine wave
bypass type: Built-in bypass
Maximum configurable power in VA: 1500 VA
product certifications: ENERGY STAR V2.0 (USA)
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0...10000 ft
Ambient air temperature for storage: -20…50 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0.00…15240.00 m
Acoustic level: 50 dBA
Heat dissipation: 463 Btu/h
IP degree of protection: IP20
Free slots: 0
Preinstalled device: Network management card 3 with environmental monitoring
Alarm: Audible and visible alarms : prioritized by severity
Emergency power off: Yes
Surge energy rate: 432 J
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 24.6 cm
Package 1 Width: 74.9 cm
Package 1 Length: 59.4 cm
Package 1 Weight: 29.6 kg
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery

Documents: SRT1500RMXLA-NC
