SRT10KRMXLT | APC Smart-UPS SRT 10000VA RM 208V | APC by Schneider Electric

Brand: APCSKU: SRT10KRMXLT

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SRT10KRMXLT

Jump to: Overview & Specifications Reviews

Overview Details for SRT10KRMXLT

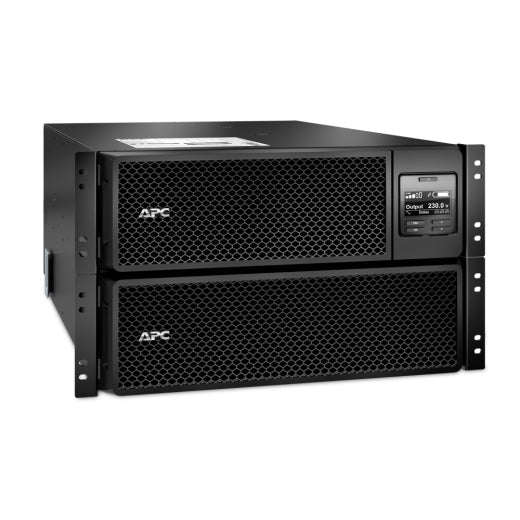

APC Smart-UPS SRT 10000VA RM 208V

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 2x NEMA L6-30R and 4x NEMA L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

Specifications

Presentation: High density, double-conversion on-line power protection with scalable runtime.
Lead time: Usually in Stock
Run time for load W information_stroke Min-max: 1000-10000 W: 3min 44s
Max. Capacity Used information_stroke: 100 %
Main Input Voltage: 208 V
Other Input Voltage: 240 V
Main Output Voltage: 208 V
Other Output Voltage: 240 V
Rated power in W: 10000 W
Rated power in VA: 10000 VA
output connection type: 4 NEMA L6-20R
2 NEMA L6-30R
Output connector type: Hard wire 3-wire (2P + E) 1
Number of rack unit: 6U
battery type: Lead-acid battery
Provided equipment: CD with software
Documentation CD
Installation guide
Rack mounting hardware
Rack mounting brackets
Rack mounting support rails
Temperature probe
USB cable
Warranty card
Web/SNMP management card
Run Time: View Runtime Graph
action_new_window
Efficiency: View Efficiency Graph
action_new_window
Number of battery filled slots: 0
Battery recharge time: 1.5 h
Number of battery replacement quantity: 2
battery voltage: +/- 192 V (split battery referenced to neutral)
Battery charger power: 1191 W rated
Battery power in VAH: 1799 VAh runtime
Battery life: 3…5 year(s)
Replacement battery: APCRBC140
action_new_window
Battery option: SRT192RMBP2 1 3598 VAh
SRT192RMBP2 2 5397 VAh
SRT192RMBP2 3 7196 VAh
SRT192RMBP2 4 8995 VAh
SRT192RMBP2 5 10794 VAh
SRT192RMBP2 6 12593 VAh
SRT192RMBP2 8 16191 VAh
SRT192RMBP2 10 19789 VAh
Extended runtime: 1
product web sub-family: High density
Number of power module free slots: 0
Number of power module filled slots: 0
Redundant: No
Colour: Black
Height: 26.3 cm
Width: 43.2 cm
Depth: 71.5 cm
Net weight: 111.58 kg
Mounting location: Front
Mounting preference: No preference
Mounting mode: Rack-mounted
Two post mountable: 0
USB compatible: Yes
Network frequency: 40...70 Hz auto-sensing
Number of input connectors: 1 hard wire 3-wire (2P + E)
Input voltage limits: 100...275 V adjustable (half load)
Maximum configurable power in W: 10000 W
Harmonic distortion: Less than 2 %
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Crest factor: 3 : 1
UPS type: Double conversion online
Wave type: Sine wave
bypass type: Internal bypass (automatic and manual)
Maximum configurable power in VA: 10000 VA
product certifications: ENERGY STAR V2.0 (USA)
FCC part 15 class A
NOM
UL 1778
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0...10000 ft
Ambient air temperature for storage: -15…45 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0.00…15240.00 m
Acoustic level: 55 dBA
Heat dissipation: 2490 Btu/h
IP degree of protection: IP20
Free slots: 1
Preinstalled device: Network management card 3 with environmental monitoring
Alarm: Audible and visible alarms : prioritized by severity
Emergency power off: Yes
Surge energy rate: 480 J
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 46.1 cm
Package 1 Width: 100 cm
Package 1 Length: 60 cm
Package 1 Weight: 129.73 kg
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery

Documents: SRT10KRMXLT
