SRT1000XLA | APC Smart-UPS SRT 1000VA 120V | APC by Schneider Electric

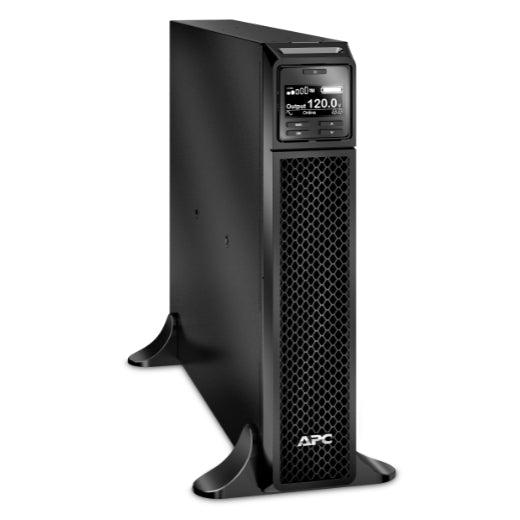

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SRT1000XLA

Jump to: Documents Overview Specifications Reviews

Documents and manuals

APC SRT1000XLA Documents

Datasheet More Info

Overview

Details for SRT1000XLA

APC Smart-UPS SRT 1000VA 120V

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.

Specifications

Presentation: High density, double-conversion on-line power protection with scalable runtime.
Lead time: Usually in Stock
Run time for load W information_stroke Min-max: 90-900 W: 10min 29s
Max. Capacity Used information_stroke: 100 %
Main Input Voltage: 120 V
Main Output Voltage: 120 V
Rated power in W: 900 W
Rated power in VA: 1000 VA
Input Connection Type: NEMA 5-15P
output connection type: 6 NEMA 5-15R
Cable length: 1.83 m
Number of cables: 1
battery type: Lead-acid battery
Provided equipment: CD with software
Communication cable
Documentation CD
Installation guide
Removable support feet
USB cable
Warranty card
Run Time: View Runtime Graph
action_new_window
Efficiency: View Efficiency Graph
action_new_window
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 3 h
Number of battery replacement quantity: 1
battery voltage: 48 V
Battery charger power: 102 W rated
Battery power in VAH: 306 VAh runtime
Battery life: 3…5 year(s)
Replacement battery: APCRBC155
action_new_window
Battery option: SRT48BP 1 890 VAh
SRT48BP 2 1484 VAh
SRT48BP 3 2078 VAh
SRT48BP 4 2671 VAh
SRT48BP 5 3265 VAh
SRT48BP 6 3859 VAh
SRT48BP 8 5047 VAh
SRT48BP 10 6233 VAh
Extended runtime: 1
product web sub-family: High density
Number of power module free slots: 0
Number of power module filled slots: 0
Redundant: No
Colour: Black
Height: 43.2 cm
Width: 8.5 cm
Depth: 50.8 cm
Net weight: 22 kg
Mounting preference: No preference
Mounting mode: Rack-mounted with kit
Two post mountable: 0
USB compatible: Yes
Mounting position: Vertical
Network frequency: 40...70 Hz auto-sensing
Input voltage limits: 50...150 V 40% load
80...150 V
Maximum configurable power in W: 900 W
Harmonic distortion: Less than 2 %
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Crest factor: 3 : 1
UPS type: Double conversion online
Wave type: Sine wave
bypass type: Built-in bypass
Maximum configurable power in VA: 1000 VA
product certifications: ENERGY STAR V2.0 (USA)
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0...10000 ft
Ambient air temperature for storage: -20…50 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0.00…15240.00 m
Acoustic level: 50 dBA
Heat dissipation: 317 Btu/h
IP degree of protection: IP20
Free slots: 1
Alarm: Audible and visible alarms : prioritized by severity
Emergency power off: Yes
Surge energy rate: 432 J
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 24.6 cm
Package 1 Width: 74.9 cm
Package 1 Length: 59.4 cm
Package 1 Weight: 29.6 kg
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery
