SMX3000RMLV2U | APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V | APC by Schneider Electric

APC | SMX3000RMLV2U

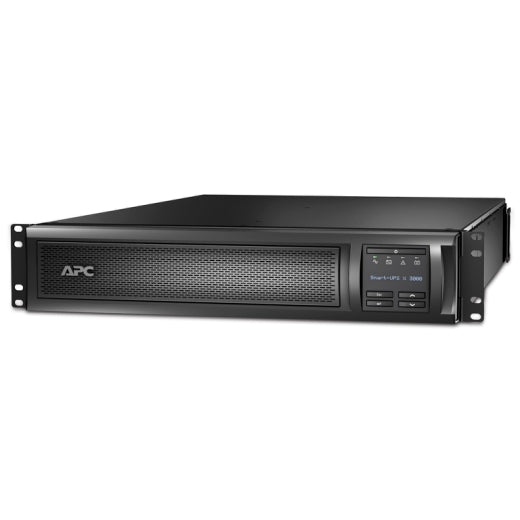

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SMX3000RMLV2U

Documents and manuals

APC SMX3000RMLV2U Documents

Overview

Details for SMX3000RMLV2U

APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. Connect to 10 of the SMX120RMBP2U external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX3000RMLV2U converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Specifications

Presentation
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time
Usually Ships within 2 Weeks
Run time for load
W
information_stroke
Min-max: 270-2700 W
6min 15s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage
120 V
Other Input Voltage
100 V
110 V
127 V
Main Output Voltage
120 V
Other Output Voltage
100 V
110 V
127 V
Rated power in W
2700 W
Rated power in VA
2880 VA
Input Connection Type
NEMA L5-30P
output connection type
3 NEMA 5-15R
3 NEMA 5-20R
1 NEMA L5-30R
Number of rack unit
2U
Cable length
2.44 m
Number of cables
1
battery type
Lead-acid battery
Provided equipment
CD with software
Documentation CD
Installation guide
Rack mounting hardware
Rack mounting brackets
Rack mounting support rails
Removable support feet
Smart UPS signalling RS-232 cable
USB cable
Run Time
View Runtime Graph
action_new_window
Efficiency
View Efficiency Graph
action_new_window
Extended runtime
1
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
3 h
Number of battery replacement quantity
1
Battery life
3…5 year(s)
Replacement battery
APCRBC117
action_new_window
Battery power in VAH
738 VAh runtime
Battery charger power
245 W rated
Battery option
SMX120RMBP2U 1 2214 VAh
SMX120RMBP2U 2 3690 VAh
SMX120RMBP2U 3 5166 VAh
SMX120RMBP2U 4 6642 VAh
SMX120RMBP2U 6 9594 VAh
SMX120RMBP2U 8 12546 VAh
SMX120RMBP2U 10 15498 VAh
Number of power module
2400
Number of power module filled slots
0
Number of power module free slots
0
product web sub-family
Extended run
Redundant
No
Colour
Black
Height
8.5 cm
Width
43.2 cm
Depth
66.7 cm
Net weight
38.45 kg
Mounting location
Front
Mounting preference
Lower
Mounting mode
Rack-mounted
Two post mountable
0
USB compatible
Yes
Input voltage limits
70...153 V
Network frequency
50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion
Less than 5 %
Maximum configurable power in VA
2880 VA
Maximum configurable power in W
2700 W
Transfer time
2-4 ms
4 ms typical : 8 ms maximum
UPS type
Line interactive
Wave type
Sine wave
Output frequency
50/60 Hz +/- 3 Hz sync to mains
product certifications
BSMI
CSA
NOM
TÜV
VCCI class A
Equipment protection policy
Lifetime : $150000
Acoustic level
55 dBA
Heat dissipation
276 Btu/h
Operating altitude
0...10000 ft
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-15…45 °C
Storage altitude
0.00…15240.00 m
Relative humidity
0…95 %
Storage Relative Humidity
0…95 %
control panel
Multifunction LCD status and control console
Emergency power off
Yes
Free slots
1
Control panel
LED status display with on line : on battery : replace battery and overload indicators
Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rate
540 J
Noise suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
24.3 cm
Package 1 Width
86.9 cm
Package 1 Length
59.6 cm
Package 1 Weight
45.36 kg
Pallet unit layers
2
Pallet layers
4
Warranty
3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
