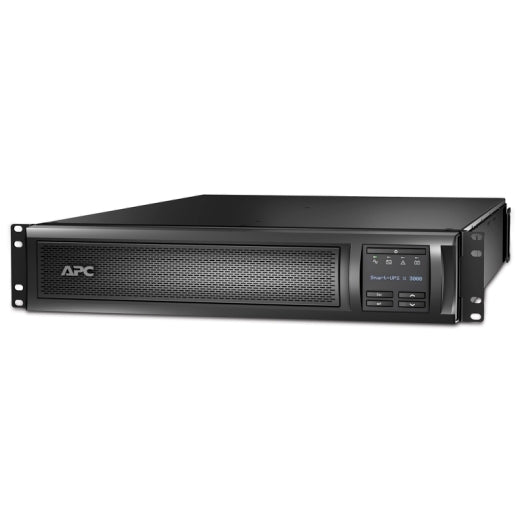

SMX3000RMHV2UNC | APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card | APC by Schneider Electric

APC | SMX3000RMHV2UNC
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SMX3000RMHV2UNC

Documents and manuals

APC SMX3000RMHV2UNC Documents

Overview

Details for SMX3000RMHV2UNC

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. A SmartSlot in the back of the UPS offers the option to add a network management card to remotely manage the UPS over the network (network cards sold separately). This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX3000RMHV2UNC converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Specifications

Presentation
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time
Usually in Stock
Run time for load
W
information_stroke
Min-max: 270-2700 W
6min 15s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage
208 V
230 V
Other Input Voltage
220 V
240 V
Main Output Voltage
230 V
Other Output Voltage
208 V
220 V
240 V
Rated power in W
2700 W
Rated power in VA
3000 VA
Input Connection Type
BS1363A British
IEC 320 C20
Schuko CEE 7 / EU1-16P
output connection type
8 IEC 320 C13
2 IEC Jumpers
1 IEC 320 C19
Number of rack unit
2U
Cable length
2.44 m
Number of cables
1
battery type
Lead-acid battery
Provided equipment
CD with software
Rack mounting support rails
Smart UPS signalling RS-232 cable
Temperature probe
User manual
Web/SNMP management card
Run Time
View Runtime Graph
action_new_window
Efficiency
View Efficiency Graph
action_new_window
Extended runtime
1
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
3 h
Number of battery replacement quantity
1
Battery life
3…5 year(s)
Replacement battery
APCRBC117
action_new_window
Battery power in VAH
738 VAh runtime
Battery charger power
245 W rated
Battery option
SMX120RMBP2U 1 2214 VAh
SMX120RMBP2U 2 3690 VAh
SMX120RMBP2U 3 5166 VAh
SMX120RMBP2U 4 6642 VAh
SMX120RMBP2U 6 9594 VAh
SMX120RMBP2U 8 12546 VAh
SMX120RMBP2U 10 15498 VAh
Number of power module
2400
Number of power module filled slots
0
Number of power module free slots
0
product web sub-family
Network card pre-installed
Redundant
No
Colour
Black
Height
8.5 cm
Width
43.2 cm
Depth
66.7 cm
Net weight
37.32 kg
Mounting location
Front
Mounting preference
Lower
Mounting mode
Rack-mounted
Two post mountable
0
USB compatible
Yes
Input voltage limits
140...280 V
Network frequency
50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion
Less than 5 %
Maximum configurable power in VA
3000 VA
Maximum configurable power in W
2700 W
Transfer time
2-4 ms
6 ms typical : 10 ms maximum
UPS type
Line interactive
Wave type
Sine wave
Output frequency
50/60 Hz +/- 3 Hz sync to mains
product certifications
C-Tick
CE
EAC
GOST
IRAM
VDE
Standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Acoustic level
55 dBA
Heat dissipation
184 Btu/h
Operating altitude
0...10000 ft
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-15…45 °C
Storage altitude
0.00…15240.00 m
Relative humidity
0…95 %
Storage Relative Humidity
0…95 %
control panel
Multifunction LCD status and control console
Emergency power off
Yes
Free slots
0
Preinstalled device
Network management card 2 with environmental monitoring
Control panel
LED status display with on line : on battery : replace battery and overload indicators
Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rate
645 J
Noise suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
24.3 cm
Package 1 Width
59.6 cm
Package 1 Length
86.9 cm
Package 1 Weight
45.36 kg
Unit Type of Package 2
PAL
Number of Units in Package 2
8
Package 2 Height
119 cm
Package 2 Width
100 cm
Package 2 Length
120 cm
Package 2 Weight
382.4 kg
Pallet unit layers
2
Pallet layers
4
Warranty
3 years repair or replace (excluding battery) and 2 years for battery, optional extended warranties available, optional on-site warranties available
