SMX3000HVT | APC Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V | APC by Schneider Electric

APC | SMX3000HVT

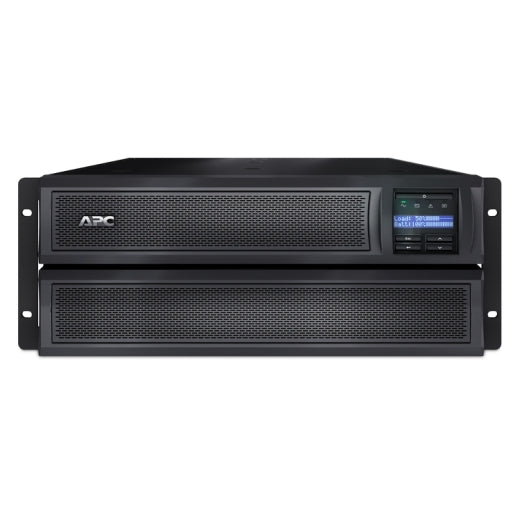

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SMX3000HVT

Documents and manuals

APC SMX3000HVT Documents

Overview

Details for SMX3000HVT

APC Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L6-20P input, 2x NEMA L6-20R, 4x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. Connect to 10 of the SMX120BP external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX3000HVT converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Specifications

Presentation
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time
Usually in Stock
Run time for load
W
information_stroke
Min-max: 270-2700 W
6min 15s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage
208 V
Other Input Voltage
220 V
230 V
240 V
Main Output Voltage
208 V
Other Output Voltage
220 V
230 V
240 V
Rated power in W
2700 W
Rated power in VA
3000 VA
Input Connection Type
NEMA L6-20P
output connection type
2 NEMA L6-20R
4 IEC 320 C13
3 IEC Jumpers
2 IEC 320 C19
Number of rack unit
4U
Number of cables
1
battery type
Lead-acid battery
Provided equipment
CD with software
Documentation CD
Smart UPS signalling RS-232 cable
User manual
USB cable
Rack mounting brackets
Run Time
View Runtime Graph
action_new_window
Efficiency
View Efficiency Graph
action_new_window
Extended runtime
1
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
3 h
Number of battery replacement quantity
1
Battery life
3…5 year(s)
Replacement battery
APCRBC143
action_new_window
Battery power in VAH
738 VAh runtime
Battery charger power
245 W rated
Battery option
SMX120BP 1 2214 VAh
SMX120BP 2 3690 VAh
SMX120BP 3 5166 VAh
SMX120BP 4 6642 VAh
SMX120BP 6 9594 VAh
SMX120BP 8 12546 VAh
SMX120BP 10 15498 VAh
Number of power module
2400
Number of power module filled slots
0
Number of power module free slots
0
product web sub-family
Extended run
Redundant
No
Colour
Black
Height
43.2 cm
Width
17.8 cm
Depth
48.3 cm
Net weight
38.64 kg
Mounting location
Front
Mounting preference
Lower
Mounting mode
Rack-mounted
Two post mountable
1
USB compatible
Yes
Input voltage limits
141...255 V
160...280 V
Network frequency
50/60 Hz +/- 3 Hz auto-sensing
Crest factor
3 : 1
Harmonic distortion
Less than 5 %
Maximum configurable power in VA
3000 VA
Maximum configurable power in W
2700 W
Transfer time
2-4 ms
4 ms typical : 8 ms maximum
UPS type
Line interactive
Wave type
Sine wave
Output frequency
50/60 Hz +/- 3 Hz sync to mains
product certifications
C-Tick
CE
CSA
GOST
IRAM
VDE
Acoustic level
55 dBA
Heat dissipation
184 Btu/h
Operating altitude
0...10000 ft
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-15…45 °C
Storage altitude
0.00…15240.00 m
Relative humidity
0…95 %
Storage Relative Humidity
0…95 %
control panel
Multifunction LCD status and control console
Emergency power off
Yes
Free slots
1
Control panel
LED status display with on line : on battery : replace battery and overload indicators
Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rate
645 J
Noise suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
33 cm
Package 1 Width
63.3 cm
Package 1 Length
58.6 cm
Package 1 Weight
47.73 kg
Pallet unit layers
2
Pallet layers
4
Warranty
3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
