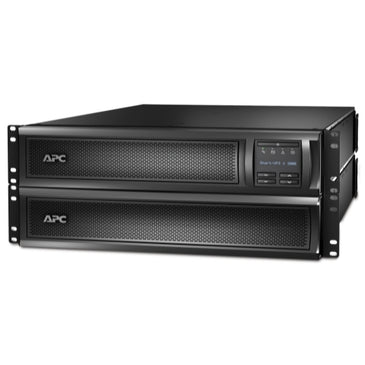

SMX2000RMLV2UNC | APC Smart-UPS X 2000VA Rack/Tower LCD 100-127V with Network Card | APC by Schneider Electric

APC | SMX2000RMLV2UNC
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SMX2000RMLV2UNC

Documents and manuals

APC SMX2000RMLV2UNC Documents

Overview

Details for SMX2000RMLV2UNC

APC Smart-UPS X 2000VA Rack/Tower LCD 100-127V with Network Card

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature in a data center or network closet. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Specifications

Lead time
Usually in Stock
Run time for load
W
information_stroke
Min-max: 180-1800 W
10min 56s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage
120 V
Other Input Voltage
100 V
110 V
127 V
Main Output Voltage
120 V
Other Output Voltage
100 V
110 V
127 V
Rated power in W
1800 W
Rated power in VA
1920 VA
Input Connection Type
NEMA 5-20P
output connection type
3 NEMA 5-15R
3 NEMA 5-20R
1 NEMA L5-20R
Number of rack unit
2U
Cable length
2.44 m
Number of cables
1
battery type
Lead-acid battery
Provided equipment
CD with software
Documentation CD
Installation guide
Network management card
Rack mounting hardware
Rack mounting brackets
Rack mounting support rails
Smart UPS signalling RS-232 cable
USB cable
Run Time
View Runtime Graph
action_new_window
Efficiency
View Efficiency Graph
action_new_window
Extended runtime
1
Number of battery filled slots
1
Number of battery free slots
0
Battery recharge time
3 h
Battery life
3…5 year(s)
Replacement battery
APCRBC117
action_new_window
Battery power in VAH
690 VAh runtime
Battery charger power
229 W rated
Battery option
SMX120RMBP2U 1 2070 VAh
SMX120RMBP2U 2 3450 VAh
SMX120RMBP2U 3 4830 VAh
SMX120RMBP2U 4 6210 VAh
SMX120RMBP2U 6 8970 VAh
SMX120RMBP2U 8 11730 VAh
SMX120RMBP2U 10 14490 VAh
Number of power module filled slots
0
Number of power module free slots
0
product web sub-family
Network card pre-installed
Redundant
No
Colour
Black
Height
8.5 cm
Width
43.2 cm
Depth
66.7 cm
Net weight
38.45 kg
Mounting location
Front
Mounting preference
Lower
Mounting mode
Rack-mounted
Two post mountable
0
USB compatible
No
Input voltage limits
75...154 V adjustable
70...153 V
Network frequency
50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion
Less than 5 %
Maximum configurable power in VA
1920 VA
Maximum configurable power in W
1800 W
Transfer time
4 ms typical : 8 ms maximum
UPS type
Line interactive
Wave type
Sine wave
Output frequency
50/60 Hz +/- 3 Hz sync to mains
product certifications
BSMI
CSA
NOM
TÜV
VCCI class A
Equipment protection policy
Lifetime : $150000
Acoustic level
55 dBA
Heat dissipation
203 Btu/h
Operating altitude
0...10000 ft
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-15…45 °C
Storage altitude
0.00…15240.00 m
Relative humidity
0…95 %
Storage Relative Humidity
0…95 %
control panel
Multifunction LCD status and control console
Free slots
0
Preinstalled device
Network management card 2 with environmental monitoring
Control panel
LED status display with on line : on battery : replace battery and overload indicators
Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rate
540 J
Noise suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
24.3 cm
Package 1 Width
86.9 cm
Package 1 Length
59.6 cm
Package 1 Weight
45.36 kg
Pallet unit layers
2
Pallet layers
4
Warranty
3 years repair or replace (excluding battery) and 2 years for battery
