SMX2000LV | APC Smart-UPS X 2000VA Rack/Tower LCD 100-127V | APC by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SMX2000LV
Overview
Details for SMX2000LV

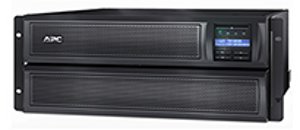

APC Smart-UPS X 2000VA Rack/Tower LCD 100-127V
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2000VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with NEMA 5-20P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.Specifications
- Presentation
- Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
- Lead time
- Usually Ships within 2 Weeks
- Run time for load
W
information_stroke
Min-max: 180-1800 W - 10min 56s
- Max. Capacity Used
information_stroke - 100 %
- Main Input Voltage
- 120 V
- Other Input Voltage
- 100 V
110 V
127 V - Main Output Voltage
- 120 V
- Other Output Voltage
- 100 V
110 V
127 V - Rated power in W
- 1800 W
- Rated power in VA
- 1920 VA
- Input Connection Type
- NEMA 5-20P
- output connection type
- 6 NEMA 5-15R
3 NEMA 5-20R
1 NEMA L5-20R - Number of rack unit
- 4U
- Cable length
- 2.44 m
- Number of cables
- 1
- battery type
- Lead-acid battery
- Provided equipment
- CD with software
Documentation CD
Installation guide
Rack mounting hardware
Rack mounting brackets
Rack mounting support rails
Removable support feet
Smart UPS signalling RS-232 cable
USB cable - Run Time
- View Runtime Graph
action_new_window - Efficiency
- View Efficiency Graph
action_new_window - Extended runtime
- 1
- Number of battery filled slots
- 0
- Number of battery free slots
- 0
- Battery recharge time
- 3 h
- Number of battery replacement quantity
- 1
- Battery life
- 3…5 year(s)
- Replacement battery
- APCRBC143
action_new_window - Battery power in VAH
- 690 VAh runtime
- Battery charger power
- 229 W rated
- Battery option
- SMX120BP 1 2070 VAh
SMX120BP 2 3450 VAh
SMX120BP 3 4830 VAh
SMX120BP 4 6210 VAh
SMX120BP 6 8970 VAh
SMX120BP 8 11730 VAh
SMX120BP 10 14490 VAh - Number of power module
- 1750
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- product web sub-family
- Extended run
- Redundant
- No
- Colour
- Black
- Height
- 43.2 cm
- Width
- 17.8 cm
- Depth
- 48.3 cm
- Net weight
- 38.64 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- Two post mountable
- 1
- USB compatible
- Yes
- Input voltage limits
- 75...154 V adjustable
70...153 V - Network frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Harmonic distortion
- Less than 5 %
- Maximum configurable power in VA
- 1920 VA
- Maximum configurable power in W
- 1800 W
- Transfer time
- 2-4 ms
4 ms typical : 8 ms maximum - UPS type
- Line interactive
- Wave type
- Sine wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- product certifications
- BSMI
CSA
NOM
TÜV
VCCI class A - Equipment protection policy
- Lifetime : $150000
- Acoustic level
- 55 dBA
- Heat dissipation
- 203 Btu/h
- Operating altitude
- 0...10000 ft
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0.00…15240.00 m
- Relative humidity
- 0…95 %
- Storage Relative Humidity
- 0…95 %
- control panel
- Multifunction LCD status and control console
- Emergency power off
- Yes
- Free slots
- 1
- Control panel
- LED status display with on line : on battery : replace battery and overload indicators
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- Surge energy rate
- 540 J
- Noise suppression
- Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 33 cm
- Package 1 Width
- 63.3 cm
- Package 1 Length
- 58.6 cm
- Package 1 Weight
- 47.73 kg
- Pallet unit layers
- 2
- Pallet layers
- 4
- Warranty
- 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
