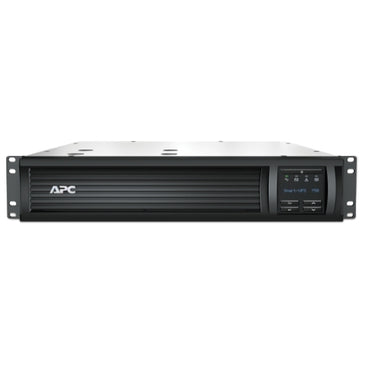

SMT750RM2UC | APC Smart-UPS 750VA RM 2U 120V with SmartConnect | APC by Schneider Electric

APC | SMT750RM2UC
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SMT750RM2UC

Documents and manuals

APC SMT750RM2UC Documents

Overview

Details for SMT750RM2UC

APC Smart-UPS 750VA RM 2U 120V with SmartConnect

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications

Presentation
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time
Usually Ships within 2 Weeks
Run time for load
W
information_stroke
Min-max: 50-500 W
5min 27s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage
120 V
Other Input Voltage
110 V
125 V
Main Output Voltage
120 V
Other Output Voltage
110 V
125 V
Rated power in W
500 W
Rated power in VA
750 VA
Input Connection Type
NEMA 5-15P
output connection type
6 NEMA 5-15R
Number of rack unit
2U
Cable length
2.44 m
Number of cables
1
battery type
Lead-acid battery
Provided equipment
Installation guide
Rack mounting support rails
USB cable
Software package
SmartConnect software for remote power monitoring feature availability varies by terms of use
Run Time
View Runtime Graph
action_new_window
Efficiency
View Efficiency Graph
action_new_window
Extended runtime
0
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
3 h
Number of battery replacement quantity
1
Battery life
4…6 year(s)
Replacement battery
APCRBC123
action_new_window
Battery power in VAH
168 VAh runtime
Battery charger power
56 W rated
Number of power module filled slots
0
Number of power module free slots
0
product web sub-family
Cloud-enabled monitoring
Redundant
No
Colour
Black
Height
8.6 cm
Width
43.2 cm
Depth
40.9 cm
Net weight
17.7 kg
Mounting location
Front
Mounting preference
Lower
Mounting mode
Rack-mounted
Two post mountable
0
USB compatible
Yes
Input voltage limits
75...154 V adjustable
82...144 V
Network frequency
50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion
Less than 5 %
Maximum configurable power in VA
750 VA
Maximum configurable power in W
500 W
Transfer time
6 ms typical : 10 ms maximum
UPS type
Line interactive
Wave type
Sine wave
Output frequency
50/60 Hz +/- 3 Hz sync to mains
product certifications
cULus
ENERGY STAR V2.0 (USA)
Equipment protection policy
Lifetime : $150000
Acoustic level
41 dBA
Heat dissipation
70 Btu/h
Operating altitude
0...10000 ft
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-15…45 °C
Storage altitude
0.00…15240.00 m
Relative humidity
0…95 %
Storage Relative Humidity
0…95 %
control panel
Multifunction LCD status and control console
Free slots
1
Communication port support
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rate
680 J
Noise suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
23.5 cm
Package 1 Width
57 cm
Package 1 Length
53.5 cm
Package 1 Weight
22.65 kg
Warranty
3 years repair or replace (excluding battery) and 2 years for battery
