SMT3000RMT2U | APC Smart-UPS 3000VA RM 2U LCD 208V | APC by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SMT3000RMT2U

Jump to: Documents Overview Specifications Reviews

Documents and manuals

APC SMT3000RMT2U Documents

Datasheet More Info

Overview

Details for SMT3000RMT2U

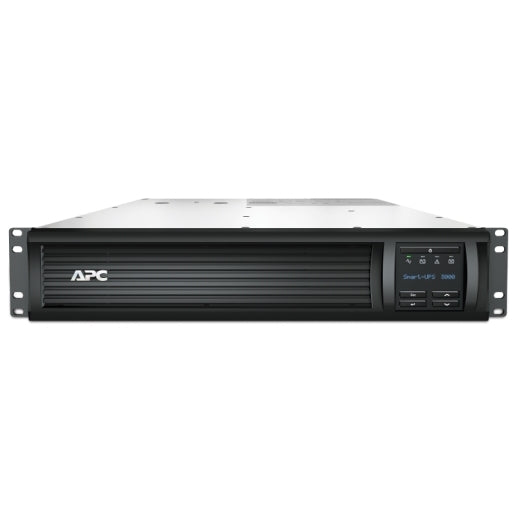

APC Smart-UPS 3000VA RM 2U LCD 208V

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 3kVA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30P input, 2x NEMA 5-20R and 6x NEMA 5-15R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications

Lead time: Usually in Stock
Run time for load W information_stroke Min-max: 270-2700 W: 3min 23s
Max. Capacity Used information_stroke: 100 %
Main Input Voltage: 208 V
Main Output Voltage: 208 V
Rated power in W: 2700 W
Rated power in VA: 3000 VA
Input Connection Type: NEMA L6-20P
output connection type: 2 NEMA L6-20R
Number of rack unit: 2U
Cable length: 2.44 m
Number of cables: 1
battery type: Lead-acid battery
Provided equipment: CD with software
Documentation CD
Rack mounting hardware
Rack mounting support rails
Smart UPS signalling RS-232 cable
USB cable
Run Time: View Runtime Graph
action_new_window
Efficiency: View Efficiency Graph
action_new_window
Extended runtime: 0
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 3 h
Number of battery replacement quantity: 1
Battery life: 3…5 year(s)
Replacement battery: RBC43
action_new_window
Battery power in VAH: 566 VAh runtime
Battery charger power: 188 W rated
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No
Height: 8.6 cm
Width: 48 cm
Depth: 68.3 cm
Net weight: 44.28 kg
Mounting location: Front
Mounting preference: No preference
Mounting mode: Rack-mounted
Two post mountable: 0
USB compatible: No
Input voltage limits: 131...268 V adjustable
141...255 V
Network frequency: 50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion: Less than 5 %
Maximum configurable power in VA: 3000 VA
Maximum configurable power in W: 2700 W
Transfer time: 4 ms typical : 8 ms maximum
UPS type: Line interactive
Wave type: Sine wave
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Equipment protection policy: Lifetime : $150000
Acoustic level: 55 dBA
Heat dissipation: 348 Btu/h
Operating altitude: 0...10000 ft
Ambient air temperature for operation: 0…40 °C
Ambient air temperature for storage: -15…45 °C
Storage altitude: 0.00…15240.00 m
Relative humidity: 0…95 %
Storage Relative Humidity: 0…95 %
control panel: Multifunction LCD status and control console
Free slots: 1
Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rate: 320 J
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 25.4 cm
Package 1 Width: 98 cm
Package 1 Length: 60 cm
Package 1 Weight: 51.7 kg
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery
