SMT3000RM2UC | APC Smart-UPS 3000VA LCD RM 2U 120V with SmartConnect | APC by Schneider Electric

APC | SMT3000RM2UC

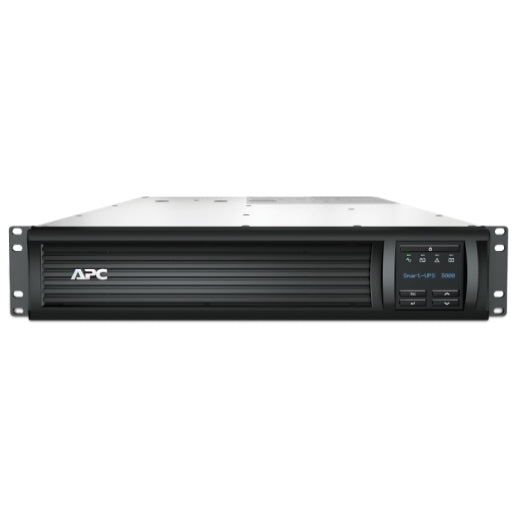

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SMT3000RM2UC

Documents and manuals

APC SMT3000RM2UC Documents

Overview

Details for SMT3000RM2UC

APC Smart-UPS 3000VA LCD RM 2U 120V with SmartConnect

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 3kVA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30P input, 6x NEMA 5-15R and 2x NEMA 5-20R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications

Presentation
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time
Usually Ships within 3 Weeks
Run time for load
W
information_stroke
Min-max: 270-2700 W
2min 49s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage
120 V
Other Input Voltage
110 V
125 V
Main Output Voltage
120 V
Other Output Voltage
110 V
125 V
Rated power in W
2700 W
Rated power in VA
2880 VA
Input Connection Type
NEMA L5-30P
output connection type
6 NEMA 5-15R
2 NEMA 5-20R
Number of rack unit
2U
Cable length
2.44 m
Number of cables
1
battery type
Lead-acid battery
Provided equipment
Documentation CD
Installation guide
Rack mounting hardware
Rack mounting support rails
Smart UPS signalling RS-232 cable
USB cable
Software package
SmartConnect software for remote power monitoring feature availability varies by terms of use
Run Time
View Runtime Graph
action_new_window
Efficiency
View Efficiency Graph
action_new_window
Extended runtime
0
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
3 h
Number of battery replacement quantity
1
Battery life
3…5 year(s)
Replacement battery
RBC43
action_new_window
Battery power in VAH
518 VAh capacity
518 VAh runtime
Battery charger power
172 W rated
Number of power module filled slots
0
Number of power module free slots
0
product web sub-family
Cloud-enabled monitoring
Redundant
No
Colour
Black
Height
8.6 cm
Width
43.2 cm
Depth
68.3 cm
Net weight
44.28 kg
Mounting location
Front
Mounting preference
Lower
Mounting mode
Rack-mounted
Two post mountable
0
USB compatible
Yes
Input voltage limits
75...154 V adjustable
82...144 V
Network frequency
50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion
Less than 5 %
Maximum configurable power in VA
2880 VA
Maximum configurable power in W
2700 W
Transfer time
6 ms typical : 10 ms maximum
UPS type
Line interactive
Wave type
Sine wave
Output frequency
50/60 Hz +/- 3 Hz sync to mains
product certifications
cULus
ENERGY STAR V2.0 (USA)
Equipment protection policy
Lifetime : $150000
Acoustic level
55 dBA
Heat dissipation
348 Btu/h
Operating altitude
0...10000 ft
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-15…45 °C
Storage altitude
0.00…15240.00 m
Relative humidity
0…95 %
Storage Relative Humidity
0…95 %
control panel
Multifunction LCD status and control console
Free slots
1
Communication port support
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Control panel
LED status display with on line : on battery : replace battery and overload indicators
Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge energy rate
459 J
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
25.4 cm
Package 1 Width
98 cm
Package 1 Length
60 cm
Package 1 Weight
51.7 kg
Warranty
3 years repair or replace (excluding battery) and 2 years for battery
