SMT2200C | APC Smart-UPS 2200VA LCD 120V with SmartConnect | APC by Schneider Electric

Brand: APCSKU: SMT2200C
APC | SMT2200C

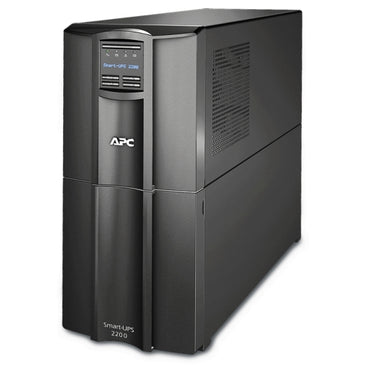

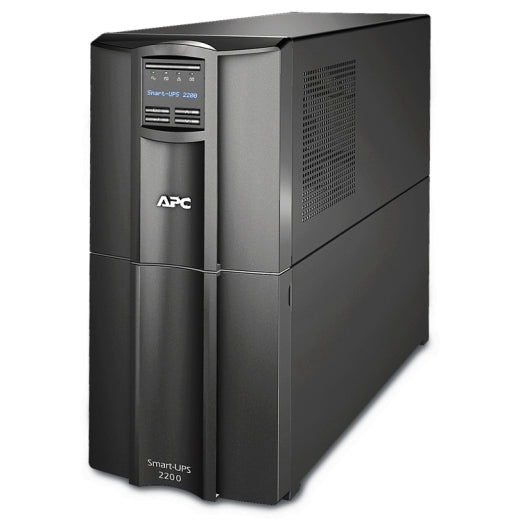

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SMT2200C

Overview Details for SMT2200C

APC Smart-UPS 2200VA LCD 120V with SmartConnect

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C20 input, BS1363A British and Schuko CEE 7/EU1-16P input cables, 8x IEC 320 C13 and 1x IEC 320 C19 outlets, and 2x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications

Presentation
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time
Usually Ships within 2 Weeks
Run time for load
W
information_stroke
Min-max: 192-1920 W
10min 4s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage
120 V
Other Input Voltage
110 V
125 V
Main Output Voltage
120 V
Other Output Voltage
110 V
125 V
Rated power in W
1920 W
Rated power in VA
1920 VA
Input Connection Type
NEMA 5-20P
output connection type
8 NEMA 5-15R
2 NEMA 5-20R
Cable length
1.83 m
Number of cables
1
battery type
Lead-acid battery
Provided equipment
Smart UPS signalling RS-232 cable
USB cable
Software package
SmartConnect software for remote power monitoring feature availability varies by terms of use
Run Time
View Runtime Graph
action_new_window
Efficiency
View Efficiency Graph
action_new_window
Extended runtime
0
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
3 h
Number of battery replacement quantity
1
Battery life
3…5 year(s)
Replacement battery
RBC55
action_new_window
Battery power in VAH
816 VAh capacity
816 VAh runtime
Battery charger power
271 W rated
Number of power module filled slots
0
Number of power module free slots
0
product web sub-family
Cloud-enabled monitoring
Redundant
No
Colour
Black
Height
43.5 cm
Width
19.6 cm
Depth
54.4 cm
Net weight
50.91 kg
Mounting location
Front
Mounting preference
No preference
Mounting mode
Not rack-mountable
Two post mountable
0
USB compatible
Yes
Input voltage limits
75...154 V adjustable
82...144 V
Network frequency
50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion
Less than 5 %
Maximum configurable power in VA
2200 VA
Maximum configurable power in W
1980 W
Transfer time
6 ms typical : 10 ms maximum
UPS type
Line interactive
Wave type
Sine wave
Output frequency
50/60 Hz +/- 3 Hz sync to mains
product certifications
cULus
ENERGY STAR V2.0 (USA)
Equipment protection policy
Lifetime : $150000
Acoustic level
45 dBA
Heat dissipation
275 Btu/h
Operating altitude
0...10000 ft
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-15…45 °C
Storage altitude
0.00…15240.00 m
Relative humidity
0…95 %
Storage Relative Humidity
0…95 %
control panel
Multifunction LCD status and control console
Emergency power off
Yes
Free slots
1
Communication port support
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rate
530 J
Noise suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
55.9 cm
Package 1 Width
76.2 cm
Package 1 Length
38.1 cm
Package 1 Weight
60.91 kg
Warranty
3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
