Overview Details for SMT1000C

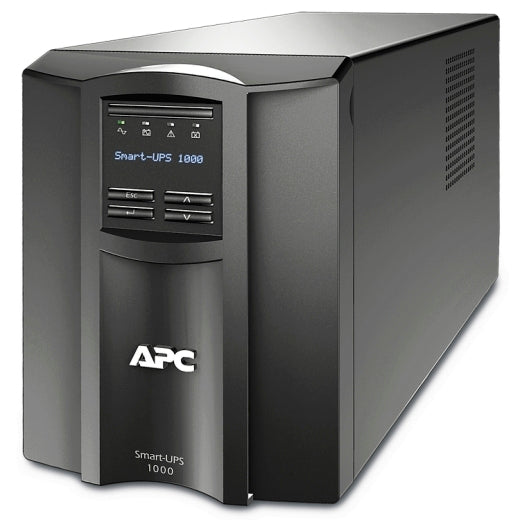

APC Smart-UPS 1000VA LCD 120V with SmartConnect

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications

Presentation: Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time: Usually in Stock
Run time for load W information_stroke Min-max: 70-700 W: 5min 49s
Max. Capacity Used information_stroke: 100 %
Main Input Voltage: 120 V
Other Input Voltage: 110 V
125 V
Main Output Voltage: 120 V
Other Output Voltage: 110 V
125 V
Rated power in W: 700 W
Rated power in VA: 1000 VA
Input Connection Type: NEMA 5-15P
output connection type: 8 NEMA 5-15R
Cable length: 1.83 m
Number of cables: 1
battery type: Lead-acid battery
Provided equipment: User manual
USB cable
Software package: SmartConnect software for remote power monitoring feature availability varies by terms of use
Run Time: View Runtime Graph
action_new_window
Efficiency: View Efficiency Graph
action_new_window
Extended runtime: 0
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 3 h
Number of battery replacement quantity: 1
Battery life: 3…5 year(s)
Replacement battery: RBC6
action_new_window
Battery power in VAH: 264 VAh runtime
Battery charger power: 88 W rated
Number of power module filled slots: 0
Number of power module free slots: 0
product web sub-family: Cloud-enabled monitoring
Redundant: No
Colour: Black
Height: 21.9 cm
Width: 17.1 cm
Depth: 43.9 cm
Net weight: 20.1 kg
Mounting location: Front
Mounting preference: No preference
Mounting mode: Not rack-mountable
Two post mountable: 0
USB compatible: Yes
Input voltage limits: 75...154 V adjustable
82...144 V
Network frequency: 50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion: Less than 5 %
Maximum configurable power in VA: 1000 VA
Maximum configurable power in W: 700 W
Transfer time: 6 ms typical : 10 ms maximum
UPS type: Line interactive
Wave type: Sine wave
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
product certifications: cULus
ENERGY STAR V2.0 (USA)
Equipment protection policy: Lifetime : $150000
Acoustic level: 41 dBA
Heat dissipation: 175 Btu/h
Operating altitude: 0...10000 ft
Ambient air temperature for operation: 0…40 °C
Ambient air temperature for storage: -15…45 °C
Storage altitude: 0.00…15240.00 m
Relative humidity: 0…95 %
Storage Relative Humidity: 0…95 %
control panel: Multifunction LCD status and control console
Free slots: 1
Communication port support: SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rate: 680 J
Noise suppression: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 33 cm
Package 1 Width: 59 cm
Package 1 Length: 33 cm
Package 1 Weight: 22.64 kg
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery

Documents: SMT1000C
