SMC1500C | APC Smart-UPS C 1500VA LCD 120V with SmartConnect | APC by Schneider Electric

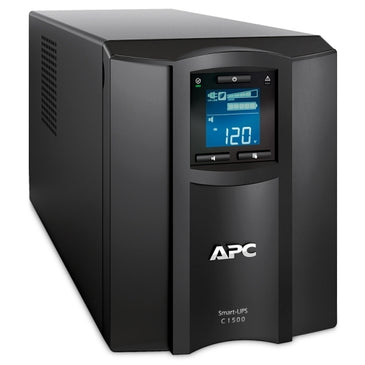

APC | SMC1500C
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SMC1500C

Documents and manuals

APC SMC1500C Documents

Overview

Details for SMC1500C

APC Smart-UPS C 1500VA LCD 120V with SmartConnect

This APC Smart-UPS is designed for small to medium business users to maintain business uptime and continuity. This 1440VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. This UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. Connect to either monitoring software using the Port on the back of the device. The SMC has a 2-year warranty, and comes with a built-in lead-acid battery. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. This 900 watt UPS offers a green mode to ensure you are operating at the highest level of efficiency while it’s smart battery management maximizes performance. Automatic Voltage Regulation (AVR) adjusts voltages ensuring reliable power while preserving battery life. Predictive battery management provides an estimated date of when battery replacement is recommended. Package Contains UPS, USB cable

Specifications

Lead time
Usually Ships within 2 Weeks
Run time for load
W
information_stroke
Min-max: 90-900 W
4min 19s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage
120 V
Other Input Voltage
110 V
125 V
Main Output Voltage
120 V
Other Output Voltage
110 V
125 V
Rated power in W
900 W
Rated power in VA
1440 VA
Product or component type
Uninterruptible power supply (UPS)
Input Connection Type
NEMA 5-15P
output connection type
8 NEMA 5-15R
Cable length
1.83 m
Number of cables
1
battery type
Lead-acid battery
Provided equipment
USB cable
Software package
SmartConnect software for remote power monitoring feature availability varies by terms of use
Run Time
View Runtime Graph
action_new_window
Efficiency
View Efficiency Graph
action_new_window
Extended runtime
0
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
3 h
Number of battery replacement quantity
1
Battery life
3…5 year(s)
Replacement battery
RBC6
action_new_window
Battery power in VAH
254 VAh runtime
Battery charger power
96 W rated
Number of power module filled slots
0
Number of power module free slots
0
product web sub-family
Cloud-enabled monitoring
Redundant
No
Colour
Black
Height
21.9 cm
Width
17.1 cm
Depth
43.9 cm
Net weight
20.1 kg
Mounting location
Front
Mounting preference
No preference
Mounting mode
Not rack-mountable
Two post mountable
0
USB compatible
Yes
Input voltage limits
85...136 V adjustable
93...130 V
Network frequency
50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion
Less than 5 %
Maximum configurable power in VA
1440 VA
Maximum configurable power in W
900 W
Transfer time
6 ms typical : 10 ms maximum
UPS type
Line interactive
Wave type
Sine wave
Output frequency
50/60 Hz +/- 3 Hz sync to mains
product certifications
cULus
ENERGY STAR V2.0 (USA)
Equipment protection policy
Lifetime : $150000
Acoustic level
45 dBA
Heat dissipation
225 Btu/h
Operating altitude
0...10000 ft
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-15…45 °C
Storage altitude
0.00…15240.00 m
Relative humidity
0…95 %
Storage Relative Humidity
0…95 %
control panel
Multifunction LCD status and control console
Free slots
0
Communication port support
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rate
680 J
Noise suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
33 cm
Package 1 Width
59 cm
Package 1 Length
33 cm
Package 1 Weight
22.64 kg
Warranty
2 years repair or replace
