SMC1500-2UC | APC Smart-UPS C 1500VA RM 2U 120V with SmartConnect | APC by Schneider Electric

APC | SMC1500-2UC

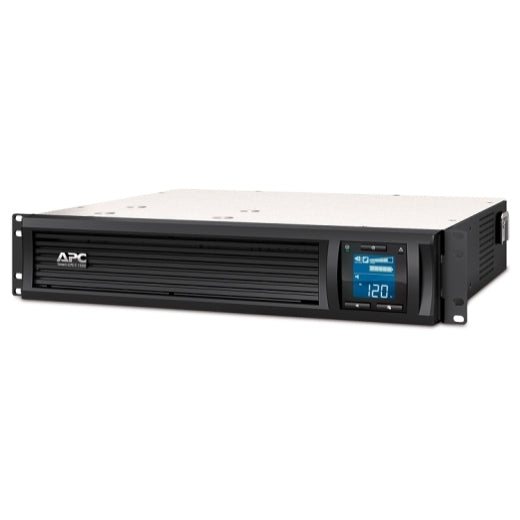

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SMC1500-2UC

Documents and manuals

APC SMC1500-2UC Documents

Overview

Details for SMC1500-2UC

APC Smart-UPS C 1500VA RM 2U 120V with SmartConnect

This APC Smart-UPS is designed for small to medium business users to maintain business uptime and continuity. This 1440VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. This UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. Connect to either monitoring software using the Port on the back of the device. The SMC has a 2-year warranty, and comes with a built-in lead-acid battery. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. This 900 watt UPS offers a green mode to ensure you are operating at the highest level of efficiency while it’s smart battery management maximizes performance. Automatic Voltage Regulation (AVR) adjusts voltages ensuring reliable power while preserving battery life. Predictive battery management provides an estimated date of when battery replacement is recommended. Package Contains UPS, Documentation CD, Installation guide, Rack mounting brackets, USB cable.

Specifications

Lead time
Usually in Stock
Run time for load
W
information_stroke
Min-max: 90-900 W
6min 45s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage
120 V
Other Input Voltage
110 V
125 V
Main Output Voltage
120 V
Other Output Voltage
110 V
125 V
Rated power in W
900 W
Rated power in VA
1440 VA
Product or component type
Uninterruptible power supply (UPS)
Input Connection Type
NEMA 5-15P
output connection type
6 NEMA 5-15R
Number of rack unit
2U
Cable length
2.44 m
Number of cables
1
battery type
Lead-acid battery
Provided equipment
Documentation CD
Installation guide
Rack mounting brackets
USB cable
Software package
SmartConnect software for remote power monitoring feature availability varies by terms of use
Run Time
View Runtime Graph
action_new_window
Efficiency
View Efficiency Graph
action_new_window
Extended runtime
0
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
3 h
Number of battery replacement quantity
1
Battery life
4…6 year(s)
Replacement battery
APCRBC157
action_new_window
Battery power in VAH
260 VAh runtime
Battery charger power
86 W rated
Number of power module filled slots
0
Number of power module free slots
0
product web sub-family
Cloud-enabled monitoring
Redundant
No
Colour
Black
Height
8.6 cm
Width
43.2 cm
Depth
47.7 cm
Net weight
25.3 kg
Mounting location
Front
Mounting preference
Lower
Mounting mode
Rack-mounted
Two post mountable
0
USB compatible
Yes
Input voltage limits
85...136 V adjustable
93...130 V
Network frequency
50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion
Less than 5 %
Maximum configurable power in VA
1440 VA
Maximum configurable power in W
900 W
Transfer time
6 ms typical : 10 ms maximum
UPS type
Line interactive
Wave type
Sine wave
Output frequency
50/60 Hz +/- 3 Hz sync to mains
product certifications
cULus
ENERGY STAR V2.0 (USA)
Equipment protection policy
Lifetime : $150000
Acoustic level
45 dBA
Heat dissipation
225 Btu/h
Operating altitude
0...10000 ft
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-15…45 °C
Storage altitude
0.00…15240.00 m
Relative humidity
0…95 %
Storage Relative Humidity
0…95 %
control panel
Multifunction LCD status and control console
Free slots
0
Communication port support
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rate
680 J
Noise suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
23.5 cm
Package 1 Width
61 cm
Package 1 Length
59 cm
Package 1 Weight
29.01 kg
Warranty
2 years repair or replace
