Documents: BX850M

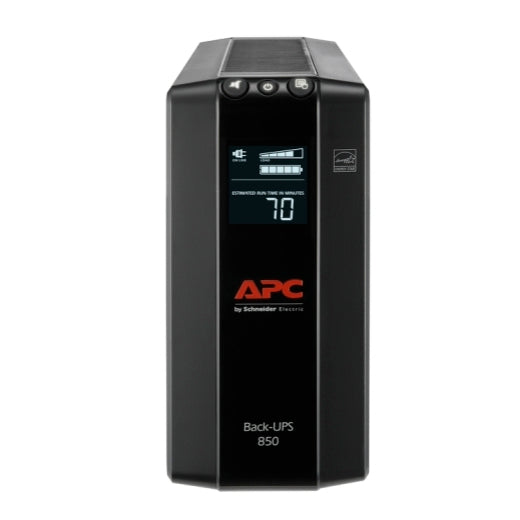

BX850M | APC Back-UPS 850, Compact Tower, 850VA, 120V, AVR, LCD, 8 NEMA outlets (4 surge) | APC by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BX850M
Overview Details for BX850M
APC Back-UPS 850, Compact Tower, 850VA, 120V, AVR, LCD, 8 NEMA outlets (4 surge)
Protect computers, wireless routers, IOT devices, and security systems with the APC Back-UPS Pro Compact 850VA. APC Back-UPS Pro Compact provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. This compact tower UPS is designed for workstations, monitors and network devices. Automatic Voltage Regulation (AVR) instantly corrects high/low voltage fluctuations so connected devices receive consistent power. The APC compact tower UPS is significantly smaller and lighter than other tower models, allowing for convenient use and installation while still providing quality power protection. With 8 outlets, this desktop UPS (uninterruptible power supply) provides seamless battery power to connected electronics. The 510w capacity is ideal for workstations and additional electronics, keeping you connected and productive during power fluctuations. Use the three soft-touch buttons on the front to easily configure settings. Included PowerChute software is available to set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. The LCD Display provides details concerning power-load of connected devices, battery runtime based on connected devices, the power level of the battery and more. 2 RJ-45 data ports are in the back to protect DSL, modem or fax lines from potentially harmful power surges. 2 coaxial ports are also in the back of the UPS for additional protection. This computer backup offers lifetime guaranteed surge protection with a $250,000 equipment protection policy. Package Contains UPS, USB cable and user manualSpecifications
- Lead time
- Usually in Stock
- Run time for load
W
information_stroke
Min-max: 51-510 W - 1min 59s
- Max. Capacity Used
information_stroke - 100 %
- Main Input Voltage
- 120 V
- Main Output Voltage
- 120 V
- Rated power in W
- 510 W
- Rated power in VA
- 850 VA
- Input Connection Type
- NEMA
- output connection type
- 4 NEMA 5-15R
4 NEMA 5-15R surge - Cable length
- 1.83 m
- Number of cables
- 1
- battery type
- Lead-acid battery
- Run Time
- View Runtime Graph
action_new_window - Efficiency
- View Efficiency Graph
action_new_window - Number of battery filled slots
- 0
- Number of battery free slots
- 0
- Battery recharge time
- 12 h
- Number of battery replacement quantity
- 1
- Battery charger power
- 7 W rated
- Battery power in VAH
- 89 VAh runtime
- Battery life
- 3…5 year(s)
- Replacement battery
- BATT17-1209
action_new_window
RBC17
action_new_window - Extended runtime
- 0
- Provided equipment
- user manual
USB cable - Number of power module free slots
- 0
- Number of power module filled slots
- 0
- Redundant
- No
- Colour
- Black
- Height
- 19 cm
- Width
- 9.1 cm
- Depth
- 31 cm
- Net weight
- 6.8 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- No
- Network frequency
- 60 Hz +/- 3 Hz
- Input voltage limits
- 88...139 V
- Maximum input current
- 12 A
- Switching current capacity
- 15 A
- Maximum configurable power in W
- 510 W
- Output frequency
- 60 Hz sync to mains
- UPS type
- Line interactive
- Wave type
- Stepped approximation to a sinewave
- Maximum output current
- 15 A
- Maximum configurable power in VA
- 850 VA
- Transfer time
- 8 ms typical : 10 ms maximum
- product certifications
- California Energy Commission (CEC)
ENERGY STAR V2.0 (USA)
TUV C-US certified - Equipment protection policy
- Lifetime : $250000
- Ambient air temperature for operation
- 0…40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0.00…15240.00 m
- Acoustic level
- 45 dBA
- Heat dissipation
- 48.5 Btu/h
- control panel
- Multifunction LCD status and control console
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Surge energy rate
- 1103 J
- Noise suppression
- Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous
- Data line protection
- Coaxial cable for CATV/SATV/modem/audio-video
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 25.3 cm
- Package 1 Width
- 44.2 cm
- Package 1 Length
- 14.2 cm
- Package 1 Weight
- 7.6 kg
- SCC14
- 10731304331794
- Pallet layers
- 3
- Warranty
- 3 years repair or replace
