BX1500M | APC Back UPS Pro BX1500M, Compact Tower, 1500VA, AVR, LCD, 120V | APC by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BX1500M
Overview
Details for BX1500M

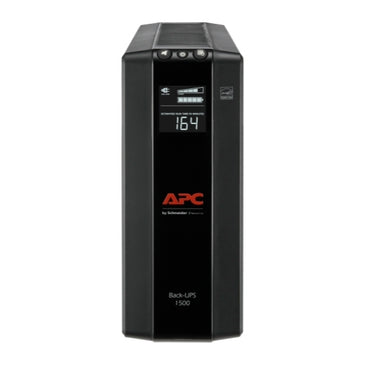

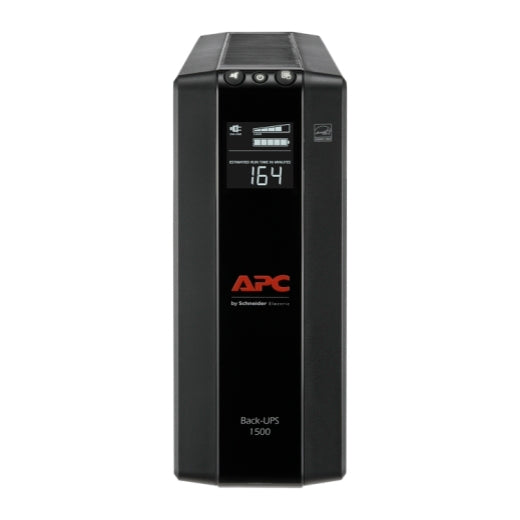

APC Back UPS Pro BX1500M, Compact Tower, 1500VA, AVR, LCD, 120V
Protect computers, wireless routers, IOT devices, and security systems with the APC Back-UPS Pro Compact 1500VA. APC Back-UPS Pro Compact provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. This compact tower UPS is designed for workstations, monitors and network devices. Automatic Voltage Regulation (AVR) instantly corrects high/low voltage fluctuations so connected devices receive consistent power. The APC compact tower UPS is significantly smaller and lighter than other tower models, allowing for convenient use and installation while still providing quality power protection. With 10 outlets, this desktop UPS (uninterruptible power supply) provides seamless battery power to connected electronics. The 865w capacity is ideal for workstations and additional electronics, keeping you connected and productive during power fluctuations. Use the three soft-touch buttons on the front to easily configure settings. Included PowerChute software is available to set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. The LCD Display provides details concerning power-load of connected devices, battery runtime based on connected devices, the power level of the battery and more. 2 RJ-45 data ports are in the back to protect DSL, modem or fax lines from potentially harmful power surges. 2 coaxial ports are also in the back of the UPS for additional protection. This computer backup offers lifetime guaranteed surge protection with a $150,000 equipment protection policy. Package Contains UPS, USB cable and user manualSpecifications
- Lead time
- Usually in Stock
- Run time for load
W
information_stroke
Min-max: 90-900 W - 2min 48s
- Max. Capacity Used
information_stroke - 100 %
- Main Input Voltage
- 120 V
- Main Output Voltage
- 120 V
- Rated power in W
- 900 W
- Rated power in VA
- 1500 VA
- Product or component type
- Uninterruptible power supply (UPS)
- Input Connection Type
- NEMA
- output connection type
- 5 NEMA 5-15R
5 NEMA 5-15R surge - Cable length
- 1.83 m
- battery type
- Lead-acid battery
- Run Time
- View Runtime Graph
action_new_window - Efficiency
- View Efficiency Graph
action_new_window - Number of battery filled slots
- 0
- Number of battery free slots
- 0
- Battery recharge time
- 16 h
- Number of battery replacement quantity
- 1
- Battery charger power
- 11 W rated
- Battery power in VAH
- 172 VAh capacity
172 VAh runtime - Extended runtime
- 0
- Replacement battery
- APCRBC124
action_new_window - Provided equipment
- user manual
USB cable
RCBO - Number of power module free slots
- 0
- Number of power module filled slots
- 0
- Redundant
- No
- Height
- 25 cm
- Width
- 10 cm
- Depth
- 38.2 cm
- Net weight
- 11 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- No
- Network frequency
- 60 Hz +/- 3 Hz
- Input voltage limits
- 88...139 V
- Maximum input current
- 12 A
- Switching current capacity
- 15 A
- Maximum configurable power in W
- 900 W
- Output frequency
- 60 Hz sync to mains
- UPS type
- Line interactive
- Wave type
- Stepped approximation to a sinewave
- Maximum configurable power in VA
- 1500 VA
- Transfer time
- 8 ms typical : 10 ms maximum
- product certifications
- California Energy Commission (CEC)
ENERGY STAR V2.0 (USA)
TUV C-US certified - Equipment protection policy
- Lifetime : $250000
- Ambient air temperature for operation
- 0…40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -15…40 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0.00…15240.00 m
- Acoustic level
- 45 dBA
- Heat dissipation
- 67.6 Btu/h
- control panel
- Multifunction LCD status and control console
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Surge energy rate
- 789 J
- Noise suppression
- Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous
- Data line protection
- Coaxial cable for CATV/SATV/modem/audio-video
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 34.8 cm
- Package 1 Width
- 49.1 cm
- Package 1 Length
- 22.7 cm
- Package 1 Weight
- 12.7 kg
- SCC14
- 10731304331787
- Warranty
- 3 years repair or replace
