BR1500MS2 | Back UPS PRO BR 1500VA, SineWave, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface | APC by Schneider Electric

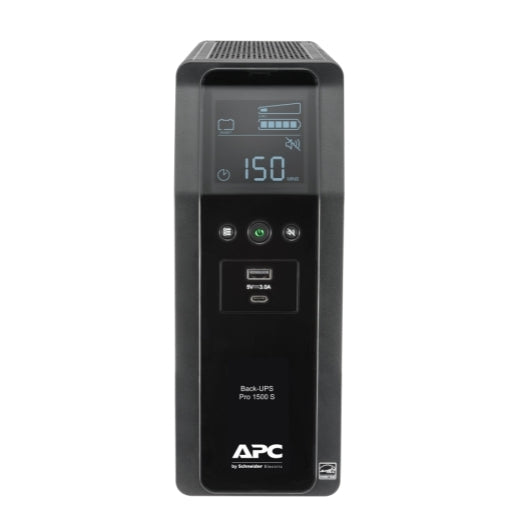

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BR1500MS2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

APC BR1500MS2 Documents

Datasheet More Info

Overview

Details for BR1500MS2

Back UPS PRO BR 1500VA, SineWave, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface

This APC Back-UPS Pro offers premium power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. The 1500VA tower UPS has 10 total outlets, 6 of which are battery back up and surge protection, and 4 that are surge protection only. It has a surge energy rating of 1080 Joules. It has 2 USB ports (Type A + C) for smart charging of personal devices. This UPS has a 3-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications

Lead time: Usually in Stock
Run time for load W information_stroke Min-max: 90-900 W: 4min 7s
Max. Capacity Used information_stroke: 100 %
Main Input Voltage: 120 V
Main Output Voltage: 120 V
Rated power in W: 900 W
Rated power in VA: 1500 VA
Product or component type: Uninterruptible power supply (UPS)
Input Connection Type: NEMA
output connection type: 6 NEMA 5-15R
4 NEMA 5-15R surge
Cable length: 1.83 m
Number of cables: 1
battery type: Lead-acid battery
Run Time: View Runtime Graph
action_new_window
Efficiency: View Efficiency Graph
action_new_window
Number of battery filled slots: 1
Number of battery free slots: 0
Battery recharge time: 16 h
Number of battery replacement quantity: 1
Battery charger power: 16 W rated
Battery design life: 3…5 year(s)
Battery power in VAH: 257 VAh capacity
257 VAh runtime
Extended runtime: 0
Replacement battery: APCRBC163
action_new_window
Provided equipment: coaxial cable
user manual
USB cable
product web sub-family: Gaming performance
Number of power module free slots: 0
Number of power module filled slots: 0
Redundant: No
Colour: Black aluminium
Height: 26 cm
Width: 10 cm
Depth: 36.8 cm
Net weight: 12.5 kg
Mounting preference: No preference
Mounting mode: Not rack-mountable
Two post mountable: 0
USB compatible: No
Network frequency: 60 Hz +/- 3 Hz
Input voltage limits: 88...147 V
Maximum input current: 12 A
Maximum configurable power in W: 900 W
Output frequency: 60 Hz +/- 3 Hz sync to mains
UPS type: Line interactive
Wave type: Sine wave
Maximum configurable power in VA: 1500 VA
Transfer time: 8 ms typical : 10 ms maximum
product certifications: ENERGY STAR V2.0 (USA)
NOM
TUV C-US certified
Equipment protection policy: Lifetime : $500000
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0...10000 ft
Ambient air temperature for storage: -15…40 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0.00…3048.00 m
Acoustic level: 45 dBA
control panel: Multifunction LCD status and control console
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge energy rate: 1080 J
Noise suppression: Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous
Data line protection: Coaxial cable for CATV/SATV/modem/audio-video
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 35.87 cm
Package 1 Width: 48.2 cm
Package 1 Length: 22.3 cm
Package 1 Weight: 14.2 kg
SCC14: 10731304426100
Warranty: 3 year repair or replace
