BR1500G | APC Power Saving Back-UPS Pro 1500 | APC by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BR1500G
Overview
Details for BR1500G

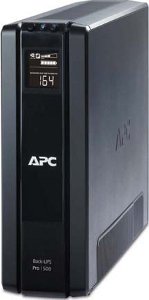

APC Power Saving Back-UPS Pro 1500
This APC Back-UPS Pro offers premium power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. The 1500VA tower UPS has 10 total outlets, 5 of which are battery back up and surge protection, and 5 that are surge protection only. It has a surge energy rating of 354 Joules. The 900w capacity is ideal for workstations and additional electronics, keeping you connected and productive during power fluctuations. Add up to one external battery pack to increase battery runtime to connected devices when utility power is lost. Model BR24BPG sold separately. Use the three soft-touch buttons on the front to easily configure settings. Included PowerChute software is available to set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. The LCD display provides details concerning power-load of connected devices, battery runtime based on connected devices, the power level of the battery and more. 2 RJ-45 data ports are in the back to protect DSL, modem or fax lines from potentially harmful power surges. 2 coaxial ports are also in the back of the UPS for additional protection. This UPS has a 3-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.Specifications
- Lead time
- Usually in Stock
- Run time for load
W
information_stroke
Min-max: 87-865 W - 3min 50s
- Max. Capacity Used
information_stroke - 100 %
- Main Input Voltage
- 120 V
- Main Output Voltage
- 120 V
- Rated power in W
- 865 W
- Rated power in VA
- 1500 VA
- Product or component type
- Uninterruptible power supply (UPS)
- Input Connection Type
- NEMA
- output connection type
- 5 NEMA 5-15R
5 NEMA 5-15R surge - Cable length
- 1.83 m
- battery type
- Lead-acid battery
- Run Time
- View Runtime Graph
action_new_window - Efficiency
- View Efficiency Graph
action_new_window - Number of battery filled slots
- 1
- Number of battery free slots
- 0
- Battery recharge time
- 8 h
- Number of battery replacement quantity
- 1
- battery voltage
- 24 V
- Battery capacity
- 9.0 Ah
- Battery charger power
- 23 W rated
- Battery power in VAH
- 187 VAh capacity
187 VAh runtime - Battery life
- 3…5 year(s)
- Replacement battery
- APCRBC124
action_new_window - Battery option
- BR24BP 1 518 VAh
BR24BPG 1 518 VAh - Battery graph comments
- This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
- Extended runtime
- 0
- Provided equipment
- user manual
USB cable - Number of power module free slots
- 0
- Number of power module filled slots
- 0
- Redundant
- No
- Height
- 30.1 cm
- Width
- 11.2 cm
- Depth
- 38.2 cm
- Net weight
- 12.1 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- Yes
- Network frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Maximum configurable power in W
- 865 W
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- UPS type
- Line interactive
- Wave type
- Stepped approximation to a sinewave
- Maximum configurable power in VA
- 1500 VA
- Transfer time
- 8 ms typical : 12 ms maximum
- product certifications
- NOM
TÜV
ENERGY STAR V2.0 (USA) - Equipment protection policy
- Lifetime : $150000
- Ambient air temperature for operation
- 0…40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...30000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0.00…15240.00 m
- Acoustic level
- 45 dBA
- control panel
- Multifunction LCD status and control console
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Surge energy rate
- 354 J
- Noise suppression
- Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous
- Let through voltage rating
- 300 V
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 38.7 cm
- Package 1 Width
- 48.8 cm
- Package 1 Length
- 23.8 cm
- Package 1 Weight
- 13.35 kg
- SCC14
- 10731304268779
- Warranty
- 3 years repair or replace
