BR1000MS | Back UPS PRO BR 1000VA, SineWave, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface | APC by Schneider Electric
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
Availability: Get a Quote
The product is not cancelable or returnable unless found defective

Speak With a Technical Expert

Image for Technical Expert

Documents: BR1000MS

BR1000MS | Back UPS PRO BR 1000VA, SineWave, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface | APC by Schneider Electric

Brand: APCSKU: BR1000MS
APC | BR1000MS

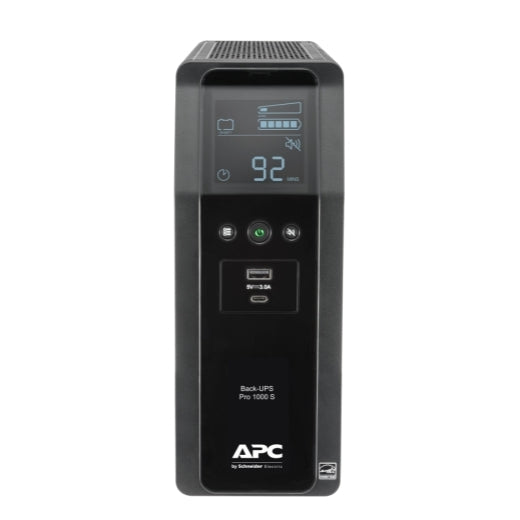

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BR1000MS

Overview Details for BR1000MS

Back UPS PRO BR 1000VA, SineWave, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface

This APC Back-UPS Pro offers premium power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. The 1000VA tower UPS has 6 total outlets, 4 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 1080 Joules. It has 2 USB ports (Type A + C) for smart charging of personal devices. With 10 outlets and 2 USB charging port, this desktop UPS (uninterruptible power supply) provides seamless battery power to connected electronics. The 600w capacity is ideal for workstations and additional electronics, keeping you connected and productive during power fluctuations. Connect and charge mobile devices via the 2 USB port provides a maximum of 3.0A . 1 USB type-A and 1 USB type-C is included. The USB ports will provide power when the UPS is both on utility and battery power. Use the three soft-touch buttons on the front to easily configure settings. Included PowerChute software is available to set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. This UPS has a 2-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. This computer backup offers lifetime guaranteed surge protection with a $250,000 equipment protection policy. Package Contains UPS, user manual

Specifications

Lead time
Usually in Stock
Run time for load
W
information_stroke
Min-max: 60-600 W
3min 41s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage
120 V
Main Output Voltage
120 V
Rated power in W
600 W
Rated power in VA
1000 VA
Product or component type
Uninterruptible power supply (UPS)
Input Connection Type
NEMA
output connection type
6 NEMA 5-15R
4 NEMA 5-15R surge
Cable length
1.83 m
Number of cables
1
battery type
Lead-acid battery
Run Time
View Runtime Graph
action_new_window
Efficiency
View Efficiency Graph
action_new_window
Number of battery filled slots
1
Number of battery free slots
0
Battery recharge time
16 h
Number of battery replacement quantity
2
battery voltage
24 V
Battery capacity
7.0 Ah
Battery charger power
8 W rated
Battery power in VAH
131 VAh capacity
131 VAh runtime
Battery life
3…5 year(s)
Replacement battery
APCRBC160
action_new_window
Extended runtime
0
Provided equipment
coaxial cable
user manual
USB cable
product web sub-family
Gaming performance
Number of power module free slots
0
Number of power module filled slots
0
Redundant
No
Colour
Black
Height
26 cm
Width
10 cm
Depth
36.8 cm
Net weight
10.2 kg
Mounting preference
No preference
Mounting mode
Not rack-mountable
Two post mountable
0
USB compatible
No
Network frequency
60 Hz +/- 3 Hz
Input voltage limits
88...147 V
Maximum input current
12 A
Switching current capacity
15 A
Maximum configurable power in W
600 W
Output frequency
60 Hz +/- 3 Hz sync to mains
UPS type
Line interactive
Wave type
Sine wave
Maximum configurable power in VA
1000 VA
Transfer time
8 ms typical : 10 ms maximum
product certifications
ENERGY STAR V2.0 (USA)
NOM
TUV C-US certified
Equipment protection policy
Lifetime : $250000
Ambient air temperature for operation
0…40 °C
Relative humidity
0…95 % non-condensing
Operating altitude
0...10000 ft
Ambient air temperature for storage
-15…40 °C
Storage Relative Humidity
0…95 % non-condensing
Storage altitude
0.00…3048.00 m
Acoustic level
45 dBA
control panel
Multifunction LCD status and control console
Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge energy rate
1080 J
Noise suppression
Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
35.87 cm
Package 1 Width
48.2 cm
Package 1 Length
22.3 cm
Package 1 Weight
11.8 kg
SCC14
10731304335389
Warranty
3 years repair or replace
