AR3155 | NetShelter SX 45U 750mm Wide x 1070mm Deep Enclosure with Sides Black | APC by Schneider Electric

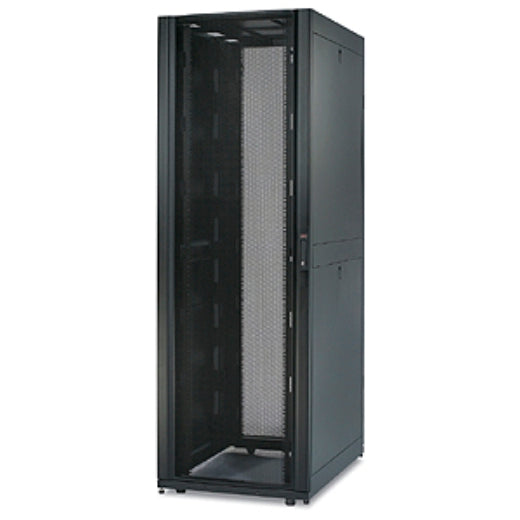

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AR3155

Jump to: Documents Overview Specifications Reviews

Documents and manuals

APC AR3155 Documents

Datasheet More Info

Overview

Details for AR3155

NetShelter SX 45U 750mm Wide x 1070mm Deep Enclosure with Sides Black

This enclosure is designed to meet current IT market trends and applications ranging from high density computing and networking to broadcast and audio-video. The rack height is 45U, 750mm Wide x 1070mm Deep . It provides a reliable rack-mounting environment for mission-critical equipment.

Specifications

Presentation: This enclosure is designed to meet current IT market trends and applications ranging from high density computing and networking to broadcast and audio-video. The rack height is 45U, 750mm Wide x 1070mm Deep . It provides a reliable rack-mounting environment for mission-critical equipment.
Lead time: Usually in Stock
Product or component type: Rack enclosure
Number of rack unit: 45U
Provided equipment: Baying hardware
Key(s)
Keyed-alike doors and side panels
Leveling feet
Mounting hardware
Pre-installed casters
Side panels
Height: 212.4 cm
Width: 75 cm
Depth: 107 cm
Net weight: 155 kg
Colour: Black
Mounting preference: No preference
Mounting mode: Not rack-mountable
Maximum mounting depth: 91.49 cm
Minimum mounting depth: 26.19 cm
Rack width: 19"
Marking: 14 gauge EIA mounting rail
16 gauge front door
16 gauge post
18 gauge rear door
18 gauge roof
18 gauge side panels
Permanent permissible load: 1020.58 kg dynamic
1700.97 kg static
Standards: UL 2416
UL 60950-1
EIA-310E
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 224 cm
Package 1 Width: 132 cm
Package 1 Length: 85 cm
Package 1 Weight: 172.3 kg
Warranty: 5 year repair or replace
