AR3340 | NetShelter SX 42U 750mm Wide x 1200mm Deep Networking Enclosure with Sides Black | APC by Schneider Electric

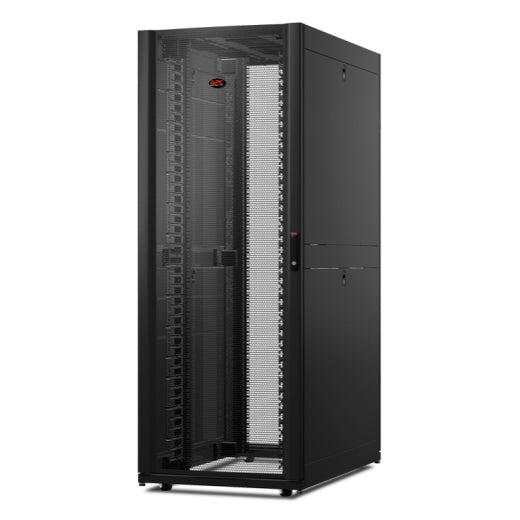

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AR3340

Jump to: Documents Overview Specifications Reviews

Documents and manuals

APC AR3340 Documents

Datasheet More Info

Overview

Details for AR3340

NetShelter SX 42U 750mm Wide x 1200mm Deep Networking Enclosure with Sides Black

An industry standard server rack ready for medium to high density environments with height designed to easily fit through standard doorways. Network rack design enables faster deployment of network switches and an optimized rack mounting space designed specifically for cable and airflow management of large core networking switches and Storage Area Network (SAN) directors. Deeper rack design provides enough rack mounting space for even the deepest devices and still plenty of room for vertically mounting Rack PDUs and cable management.

Specifications

Presentation: NetShelter SX Networking Enclosure expands Schneider Electric's superior IT enclosure line with improved support for high density networking applications. Integrated high density cable managers and improved cable access roof provide support for large cable bundles. When combined with the Side Airflow Duct Kit, the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors.
Lead time: Usually in Stock
Product or component type: Rack enclosure
Number of rack unit: 42U
Provided equipment: Baying hardware
Key(s)
Keyed-alike doors and side panels
Leveling feet
Mounting hardware
Pre-installed casters
Side panels
Vertical cable managers
Height: 199.1 cm
Width: 75 cm
Depth: 120 cm
Net weight: 161.36 kg
Colour: Black
Mounting preference: No preference
Mounting mode: Not rack-mountable
Maximum mounting depth: 95.89 cm
Minimum mounting depth: 27.94 cm
Rack width: 19"
Marking: 14 gauge EIA mounting rail
16 gauge front door
16 gauge post
16 gauge rear door
18 gauge roof
18 gauge side panels
Permanent permissible load: 1020.58 kg dynamic
1700.97 kg static
Standards: UL 2416
UL 60950-1
EIA-310E
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 211.8 cm
Package 1 Width: 132.08 cm
Package 1 Length: 85.09 cm
Package 1 Weight: 183.18 kg
Warranty: 5 year repair or replace
