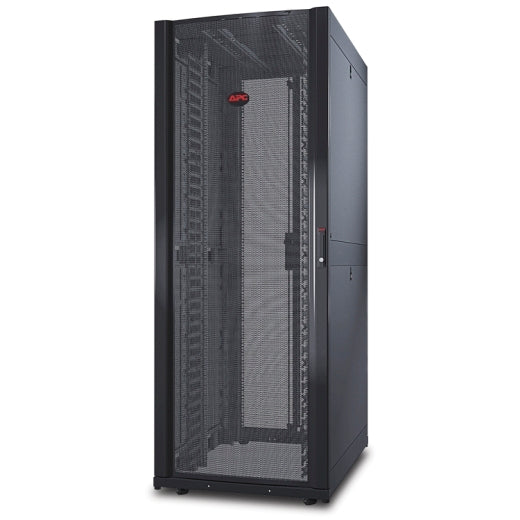

AR3140 | NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides Black | APC by Schneider Electric

APC | AR3140
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AR3140

Documents and manuals

APC AR3140 Documents

Overview

Details for AR3140

NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides Black

With over 1 million units sold and 15 years of customer feedback, the NetShelter SX rack handles a wide array of uses from high density servers to edge computing. This networking rack is highly configurable and is especially built for high density networking applications. Integrated cable managers, optimized cable access, and removable roof provide support for large cable bundles. Reversible, curved front door provides 69% ventilation, and lockable doors and split side panels help prevent unauthorized access. When combined with the Side Airflow Duct Kit, the rack completely isolates cold air intake and hot air exhaust. Create a full solution with UPS, PDU, cooling, keycard access, rack sensors or remote monitoring using Row Designer or Local Edge Configurator. This rack fits easily through standard doorways, ships fully assembled and includes a 5 year manufacturer’s warranty.

Specifications

Presentation
NetShelter SX Networking Enclosure expands Schneider Electric's superior IT enclosure line with improved support for high density networking applications. Integrated high density cable managers and improved cable access roof provide support for large cable bundles. When combined with the Side Airflow Duct Kit, the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors.
Lead time
Usually in Stock
Product or component type
Rack enclosure
Number of rack unit
42U
Provided equipment
Baying hardware
Key(s)
Keyed-alike doors and side panels
Leveling feet
Mounting hardware
Pre-installed casters
Side panels
Vertical cable managers
Height
199.1 cm
Width
75 cm
Depth
107 cm
Net weight
155.95 kg
Colour
Black
Mounting preference
No preference
Mounting mode
Not rack-mountable
Mounting location
Front
Rear
Maximum mounting depth
81.92 cm
Minimum mounting depth
27.94 cm
Rack width
19"
Marking
14 gauge EIA mounting rail
16 gauge front door
16 gauge post
16 gauge rear door
18 gauge roof
18 gauge side panels
Permanent permissible load
1020.58 kg dynamic
1700.97 kg static
Standards
UL 2416
UL 60950-1
EIA-310E
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
211.8 cm
Package 1 Width
85.09 cm
Package 1 Length
115.6 cm
Package 1 Weight
168.18 kg
Warranty
5 year repair or replace
