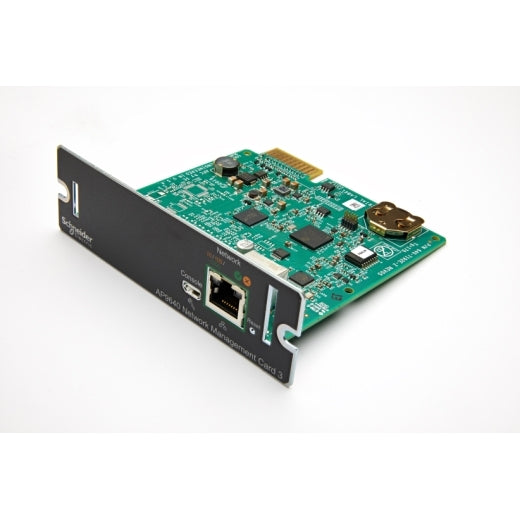

AP9640 | UPS Network Management Card 3 | APC by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AP9640

Jump to: Documents Overview Specifications Reviews

Documents and manuals

APC AP9640 Documents

Datasheet More Info

Overview

Details for AP9640

UPS Network Management Card 3

This APC UPS Network Management Card enables remote monitoring and control of individual Single Phase and Three Phase APC UPS via secure network browsers or external command line interfaces. The NMC is connected to the UPS via a web browser, command line interface, or SNMP. The flash upgradeable firmware installs maintenance releases of firmware remotely using FTP. The Network Management Card provides multiple-user access, pre-loaded multiple language support, advanced security protection, and data and event log space. The NMC card with PowerChute Network Shutdown provides unattended, graceful shutdown of physical servers, virtual machines, and HCI clusters. The network card supports user-selectable password with strong password rules and a reset password mechanism.

Specifications

Lead time: Usually in Stock
Provided equipment: User manual
USB cable
Height: 3.8 cm
Width: 12.1 cm
Depth: 11.4 cm
Net weight: 0.08 kg
Mounting preference: No preference
Mounting mode: Not rack-mountable
Standards: EN 55022 class A
EN 55024
ICES-003
product certifications: AS/NZS 3548 (C-Tick) class A
FCC part 15 class A
GOST
VCCI class A
Ambient air temperature for operation: 0…45 °C
Operating altitude: 0...10000 ft
Relative humidity: 0…95 %
Ambient air temperature for storage: -5…45 °C
Storage altitude: 0.00…15240.00 m
Storage Relative Humidity: 0…95 %
Authentication: Radius
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.1 cm
Package 1 Width: 15.9 cm
Package 1 Length: 23.5 cm
Package 1 Weight: 0.34 kg
Warranty: 2 years repair or replace
