AP8841 | RACK PDU 2G, METERED, ZEROU, 30A, 200/208V, (36) C13 & (6) C19 | APC by Schneider Electric

APC | AP8841

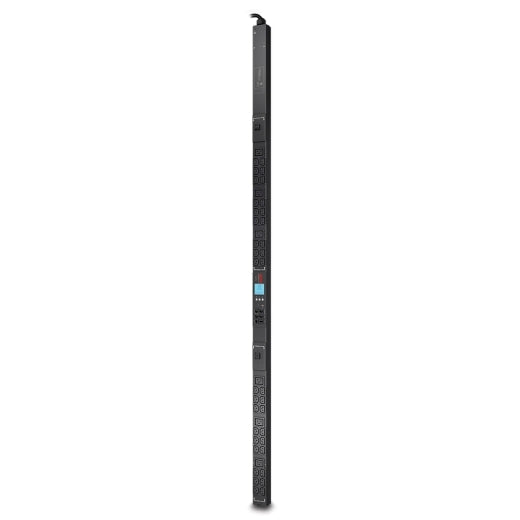

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AP8841

Documents and manuals

APC AP8841 Documents

Overview

Details for AP8841

RACK PDU 2G, METERED, ZEROU, 30A, 200/208V, (36) C13 & (6) C19

APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (36) IEC 60320 C13 and (6) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separatelymodel AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable

Specifications

Presentation
APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (36) IEC 60320 C13 and (6) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra-low profile. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable.
Lead time
Usually in Stock
Main Input Voltage
200 V
208 V
PDU type
Metered
Main Output Voltage
200 V
208 V
Input Connection Type
NEMA L6-30P
Number of rack unit
0U
Cable length
3.00 m
Number of cables
1
Provided equipment
Installation guide
Rack mounting brackets
Serial configuration cable
Safety guide
Colour
Black
Height
179.1 cm
Width
5.6 cm
Depth
4.4 cm
Net weight
6.84 kg
Mounting location
Side
Mounting preference
No preference
Mounting mode
Rack-mounted
USB compatible
No
Mounting position
Vertical
[In] rated current
24 A
Permissible voltage
200…240 V
Input current limits
30 A
Load capacity
4992 VA
Network frequency
50/60 Hz
Number of power socket outlets
36 IEC 60320 C13
6 IEC 60320 C19
product certifications
METI Denan
PSE
VDE
Standards
CSA C22.2 No 60950
IEC 60950
UL 60950-1
Ambient air temperature for operation
-5…60 °C
Relative humidity
5…95 %
Operating altitude
0...10000 ft
Ambient air temperature for storage
-25…65 °C
Storage Relative Humidity
5…95 %
Storage altitude
0.00…15240.00 m
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
200 cm
Package 1 Width
10.7 cm
Package 1 Length
16.2 cm
Package 1 Weight
8.47 kg
Warranty
2 years repair or replace
