QTS-17171X-SPF0000 | HYDROGEN,EXL PR,SNSR GRD,RMCAL | ACI

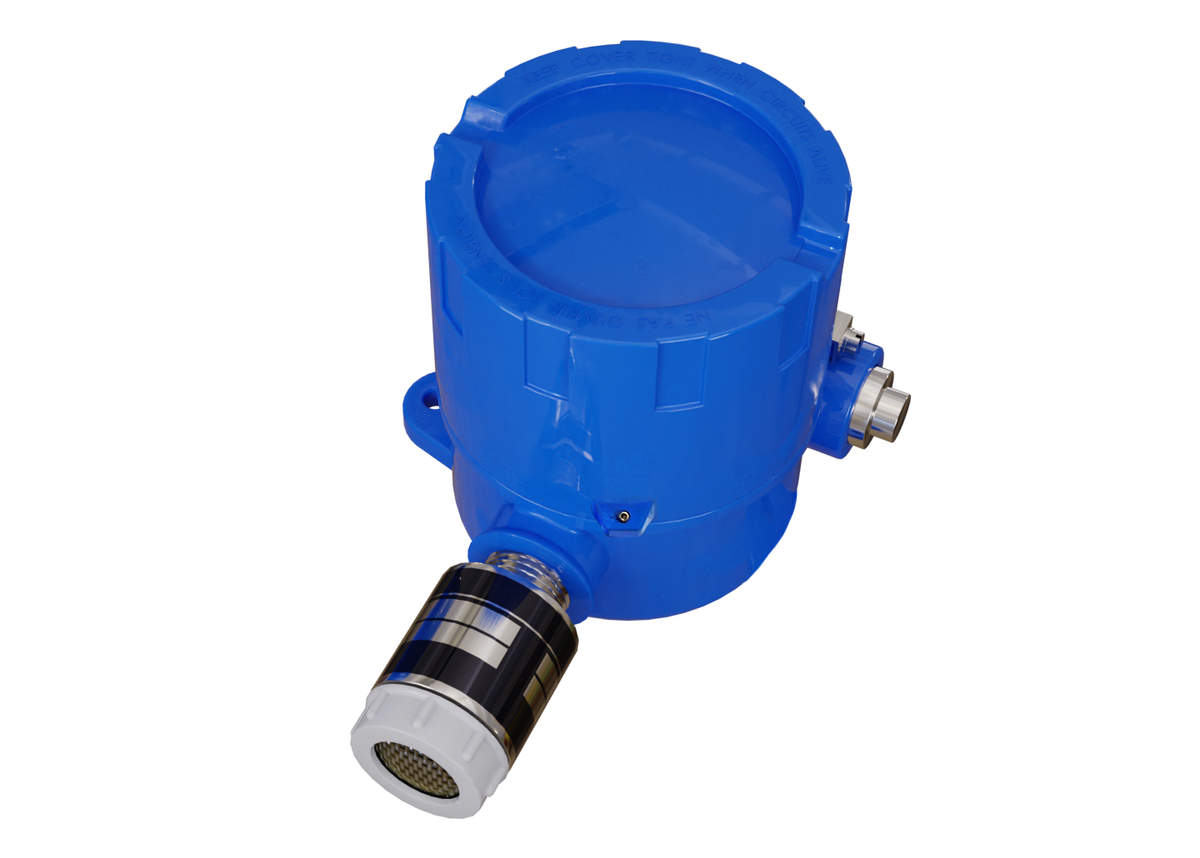

Expl Proof Sensor, Hydrogen, 0-100% LEL, 3-wire 4-20mA Output, Insustrial NEMA 4X, S.S. sensor housing, Remote Cal Adapter, Sensor Guard
Overview Details for QTS-17171X-SPF0000
HYDROGEN,EXL PR,SNSR GRD,RMCAL
The QTS-1710 Series utilizes a standard pellistor bead technology for the measurement of combustible gases. The sensor is resistant to poisoning substances such as Silicones, Sulphur and Chlorinated compounds. The Sensor is mounted to an explosion-proof housing while the transmitter provides a 3-wire, linear 4 to 20 mA output signal that is proportional to the LEL (Lower Explosive Limit) of the calibrated combustible gas. Test jacks are provided to monitor the transmitter signal without having to interrupt the output signal and Zero and Span adjustments allow for eld calibration. Calibration and bump testing should be completed every three months in all combustible or explosive atmospheres. Calibration gases and 0.5 liter/minute gas regulators are not available through ACI. These should be purchased through your local gas supply company or companies such as Portagas® (Praxair®, Inc.) or Mesa Specialty Gases®. See the Q8 Combustible and Toxic Gas transmitter product data sheet for all applications that require a local display, remote sensor and a wider range of gases and output options. Refer to all applicable Federal, State, Provincial and Local Health and Safety laws and regulations before using these products.
Applications: Mechanical Rooms, Warehouses, Refrigeration Plants, Industrial Plants, Process Monitoring, Leak Detection, Parking Garages, Auto/Truck Maintenance Facilities
Specifications
Item Number | QTS-17171X-SPF0000 |
Brand | ACI |
