Documents: QTS-17101X-S000000

Datasheet Installation Instructions More Info

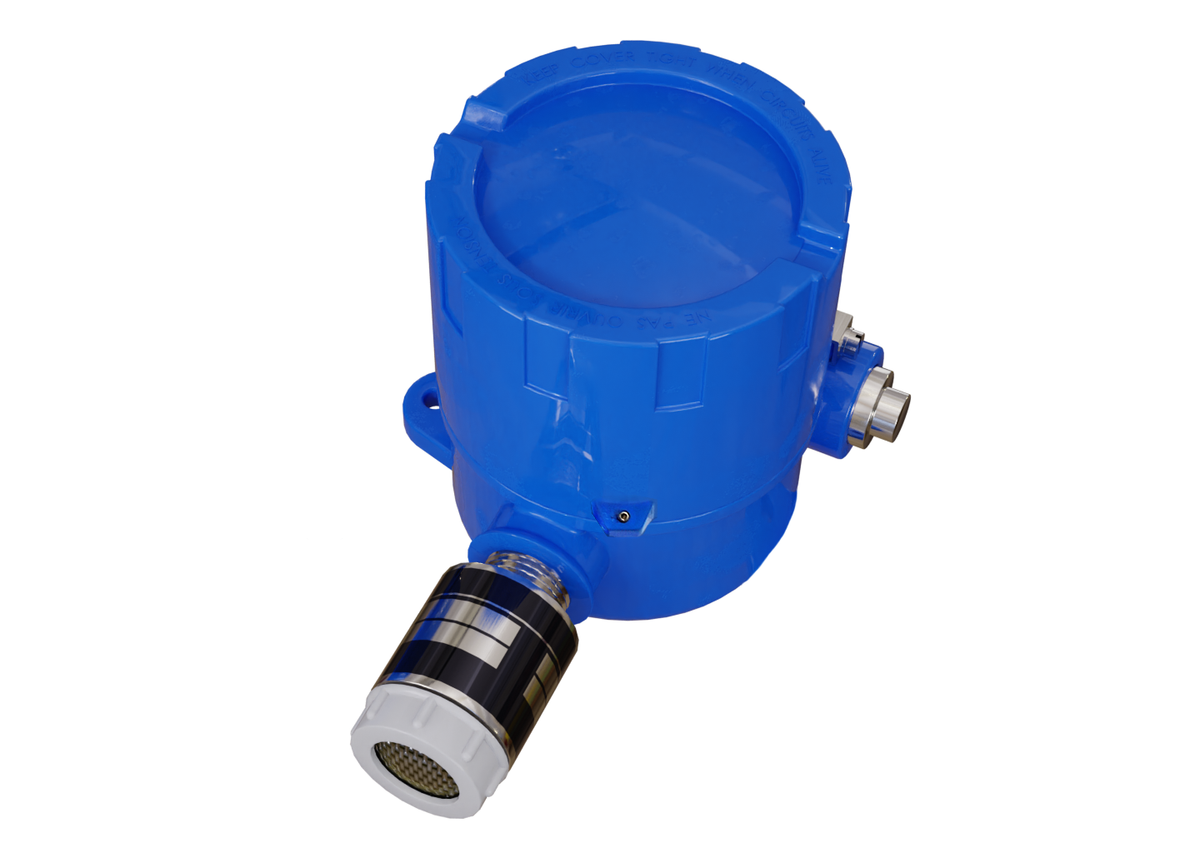

QTS-17101X-S000000 | METHANE-R SENSOR W/EXPL ENC,5% | ACI

Expl Proof Sensor, Methane, 0-100% LEL, 4-20mA Output

Brand: ACISKU: QTS-17101X-S000000

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QTS-17101X-S000000

Jump to: Overview & Specifications Reviews

Overview Details for QTS-17101X-S000000

METHANE-R SENSOR W/EXPL ENC,5%

The QTS-1710 Series utilizes a standard pellistor-bead technology for the measurement of combustible gases. The sensor is resistant to poisoning substances such as Silicones, Sulphur and Chlorinated compounds. The Sensor is mounted to an explosion-proof housing while the transmitter provides a 3-wire, linear 4 to 20 mA output signal that is proportional to the LEL (Lower Explosive Limit) of the calibrated combustible gas. Test jacks are provided to monitor the transmitter signal without having to interrupt the output signal and Zero and Span adjustments allow for eld calibration. Calibration and bump testing should be completed every three months in all combustible or explosive atmospheres. Calibration gases and 0.5 liter/minute gas regulators are not available through ACI.
